A 6-18 GHz 100W RF power amplifier is often chosen when microwave test systems need higher RF output power across a wide operating band. This range is useful for communication validation, RF front-end testing, broadband source amplification, and system-level RF integration where one amplifier must cover multiple test cases.

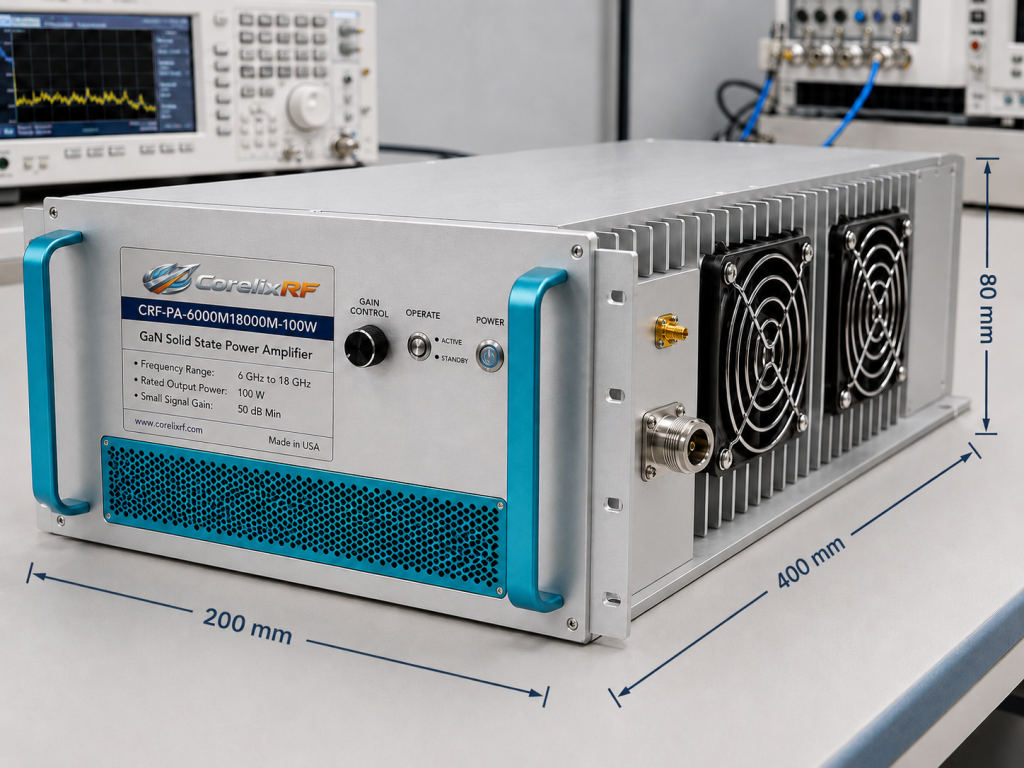

The CorelixRF CRF-PA-6000M18000M-100W operates from 6 GHz to 18 GHz with 100 W rated output power. It is built on GaN SSPA technology and provides 50 dB minimum small-signal gain. The platform uses SMA-F input, N-F output, RS485 control, 28 V DC supply, and forced-air cooling in a 400 x 200 x 80 mm mechanical form factor.
Why Engineers Choose 6-18 GHz Coverage
The 6-18 GHz band supports many microwave test and validation tasks. A broadband amplifier in this range can reduce hardware swaps and simplify test planning. Instead of building separate amplifier paths for different bands, engineers can use one solid state power amplifier platform for multiple frequency points.
For test and measurement systems, repeatability matters. A single wideband platform can improve calibration consistency when the RF chain is carefully characterized. However, integrators should still request final test data for the specific configuration, especially when output power, waveform, thermal limits, or load mismatch behavior are critical.
100 W Output Power and Gain Requirements
The CRF-PA-6000M18000M-100W is rated for 100 W solid-state RF output power and 50 dB minimum small-signal gain. Gain flatness is specified as ±5 dB. These parameters help engineers estimate required input drive and expected power variation over frequency.
The specified maximum input power is 0 dBm. This means the signal source or exciter should be level-controlled before driving the amplifier. Overdrive should not be used as a substitute for proper power planning. For a reliable RF system, review the source output, attenuator plan, cabling loss, and protection thresholds together.
Forced-Air Cooling and Mechanical Planning
A 100 W microwave amplifier generates meaningful heat, so forced-air cooling is part of the system design. The CorelixRF unit is listed as a 400 x 200 x 80 mm forced-air configuration. Designers should keep clear airflow paths, avoid blocking inlet and outlet areas, and consider ambient temperature during long-duration tests.
Thermal planning should be included in the RFQ. If the amplifier will be installed in a rack, vehicle enclosure, shielded box, or compact cabinet, the mechanical layout can determine whether the amplifier maintains stable output power. For high-duty-cycle testing, ask for thermal review and acceptance test conditions.
Control Interface and Protection Functions

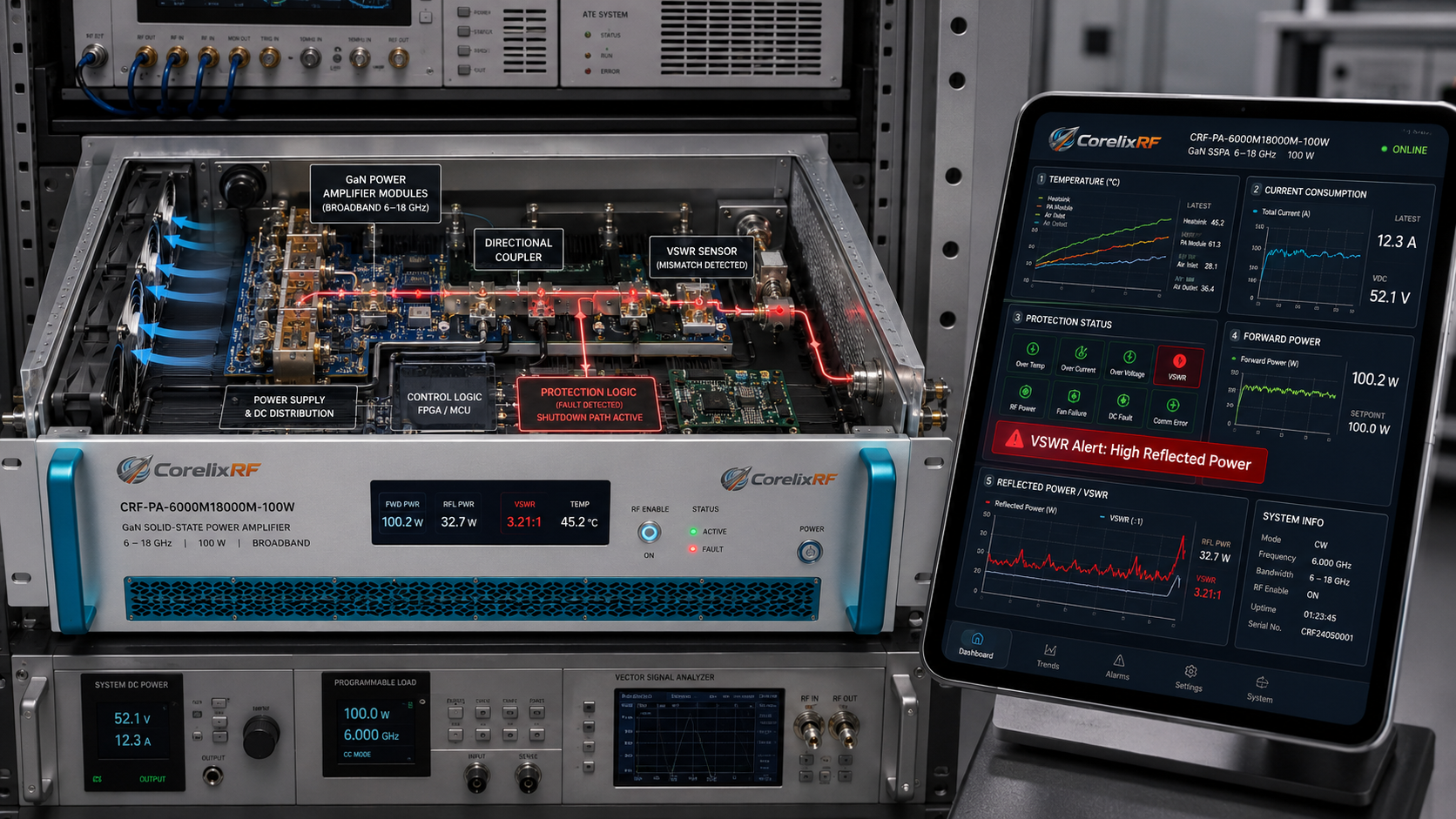

The 6-18 GHz 100 W platform includes RS485 control, real-time temperature monitoring, real-time current monitoring, alarm and fault protection, over-temperature protection, over-drive protection, over-voltage protection, and VSWR protection with alarm functions. Optional forward and reverse power monitoring can be reviewed for projects that need more detailed RF feedback.
These features are useful when the amplifier is integrated into an automated test system. RS485 control allows the amplifier to be managed by a system controller, while protection and monitoring help operators respond to abnormal operating conditions. For more complex systems, the control protocol and status reporting should be reviewed before production.
Best-Fit Applications
This amplifier is designed for test and measurement instrumentation, communication systems, RF interference system-level testing, and aerospace control systems. It can be considered when engineers need a custom RF amplifier recommendation for a broadband microwave chain with higher power than compact low-wattage modules can provide.
To evaluate fit, send the required frequency range, output power, waveform, duty cycle, input level, mechanical constraints, cooling method, control interface, and load VSWR expectations. These inputs help CorelixRF review whether the CRF-PA-6000M18000M-100W platform meets the project requirement or needs configuration adjustments.
FAQ
What is the focus keyword?
The focus keyword is 6-18 GHz 100W RF power amplifier.
What connector configuration is listed?
The source data lists SMA-F input and N-F output connectors.
What control interface is used?
The listed control interface is RS485.
