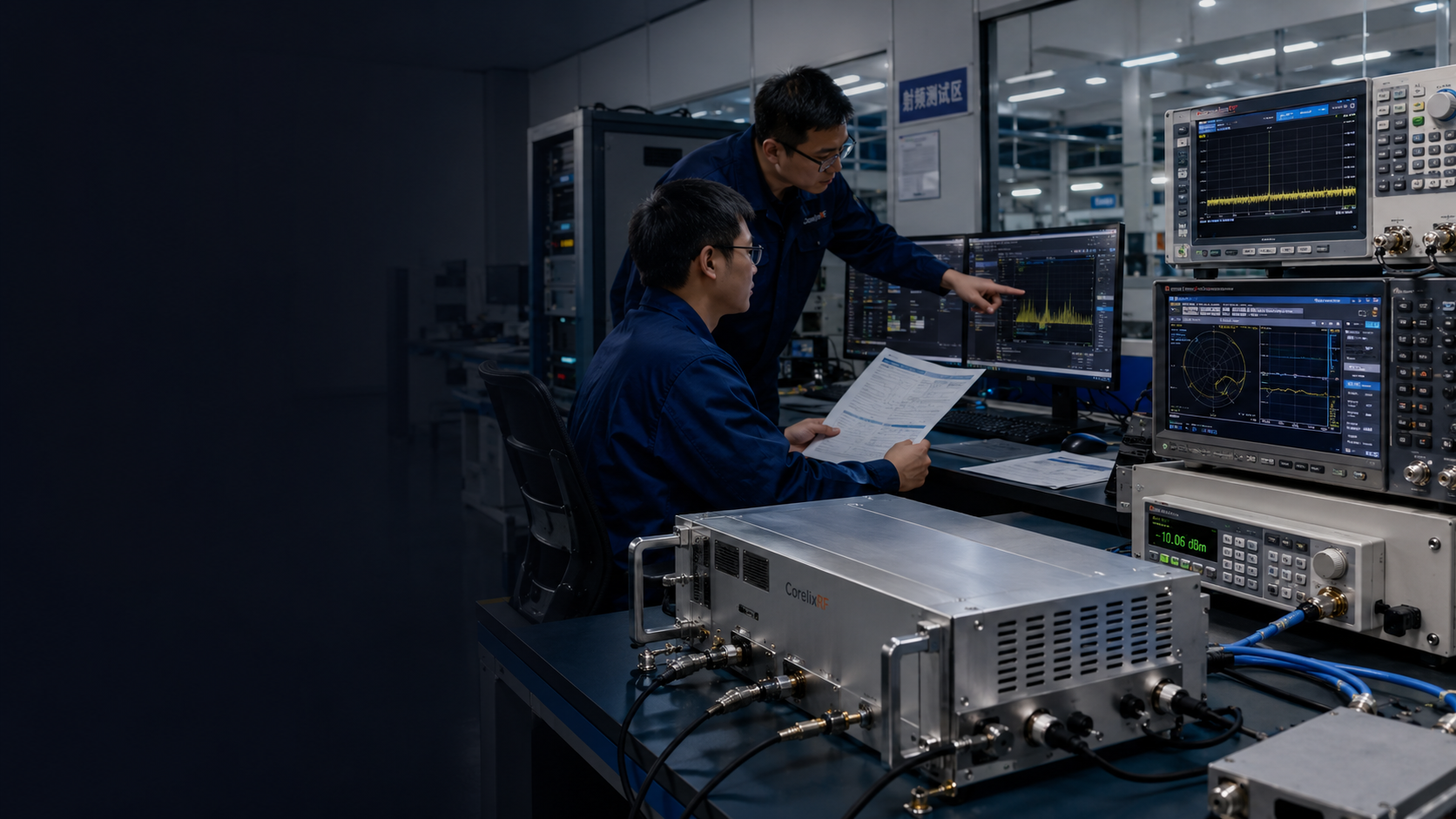

RF Testing & Documentation Capability
Factory RF testing, validation records, and documentation support for custom RF power amplifiers, SDR modules, antenna platforms, and OEM RF front-end projects.
CorelixRF verifies key RF, mechanical, thermal and documentation requirements before shipment, helping engineering buyers reduce procurement risk and supporting smoother system integration.
Verified RF Performance Matters More Than Catalog Claims
RF products are often integrated into larger systems where frequency response, output power, connector condition, heat dissipation and control interface reliability directly affect project success. Without testing records and clear documentation, engineering buyers may not discover mismatches until after delivery.
Key RF, Electrical, Mechanical and Thermal Validation Items
Testing scope can be matched to the product type and project requirement, including standard factory checks, custom acceptance items and documentation needed for engineering review.
Output Power Test
Measured RF output power at selected frequency points, operating bands or project-defined test conditions.
Power ValidationGain & Gain Flatness
Gain response and flatness review across the operating frequency range for amplifier and RF chain projects.
Frequency ResponseInput / Output VSWR
VSWR and RF matching review for amplifiers, antennas and connected RF front-end configurations.
RF MatchingHarmonics & Spurious
Spectrum review for harmonic, spurious and unwanted signal behavior depending on product and requirement.
Spectrum ReviewCurrent & Efficiency Check
DC current, voltage and efficiency review to support power supply planning and system integration.
Electrical ReviewThermal Stability Review
Review of operating temperature, cooling condition, heat-sink contact and stability under defined conditions.
Thermal CheckPulse Performance Test
Pulse mode review for projects requiring pulse output, duty cycle control and time-domain behavior validation.
Pulse ModeProtection & Final Inspection
Protection function, connector condition, mechanical inspection and before-shipment QC review.
Final QCMeasured Data That Helps Customers Review RF Performance
Test documentation should make technical review easier for engineering buyers. CorelixRF can prepare measured records based on the product type, agreed acceptance items and required shipment documentation.
Output Power vs. Frequency
Measured RF output power at selected frequency points or across required operating bands.
Gain Flatness Data
Gain response and flatness information used to review full-band performance consistency.
VSWR / Return Loss
Input and output matching review for amplifiers, antennas and integrated RF chains.
Harmonic & Spurious Review
Spectrum review records for unwanted signals, harmonics and spurious performance.
Thermal Stability Record
Temperature and stability information under defined power, duty cycle or cooling conditions.

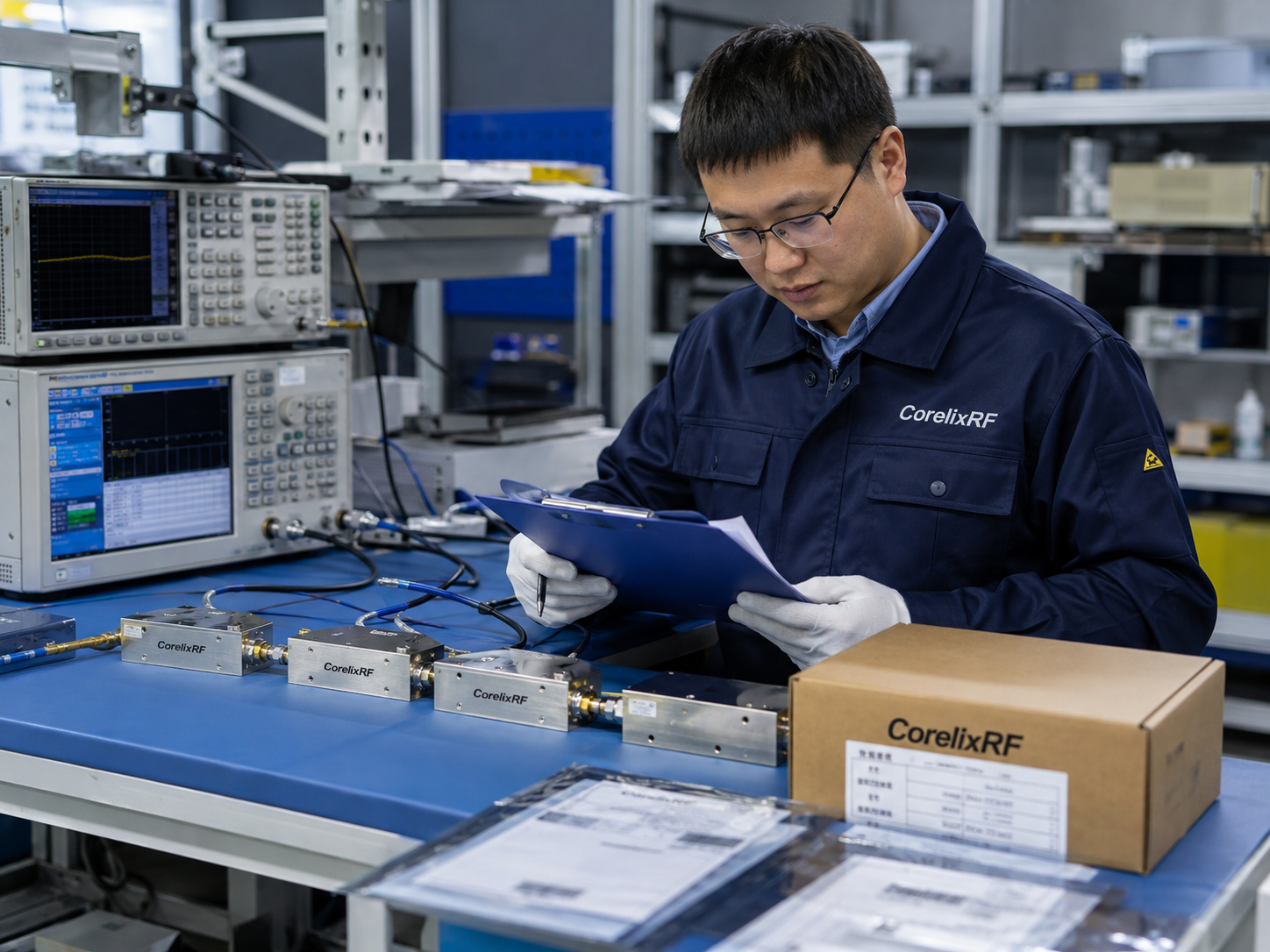

Final QC Checklist
Connector, appearance, label, mechanical interface and packing inspection records before shipment.
Validation Coverage for Amplifiers, SDR Modules, Antennas and RF Systems
Each RF product category requires different testing priorities. CorelixRF aligns test and documentation scope with the actual product platform and system integration requirement.

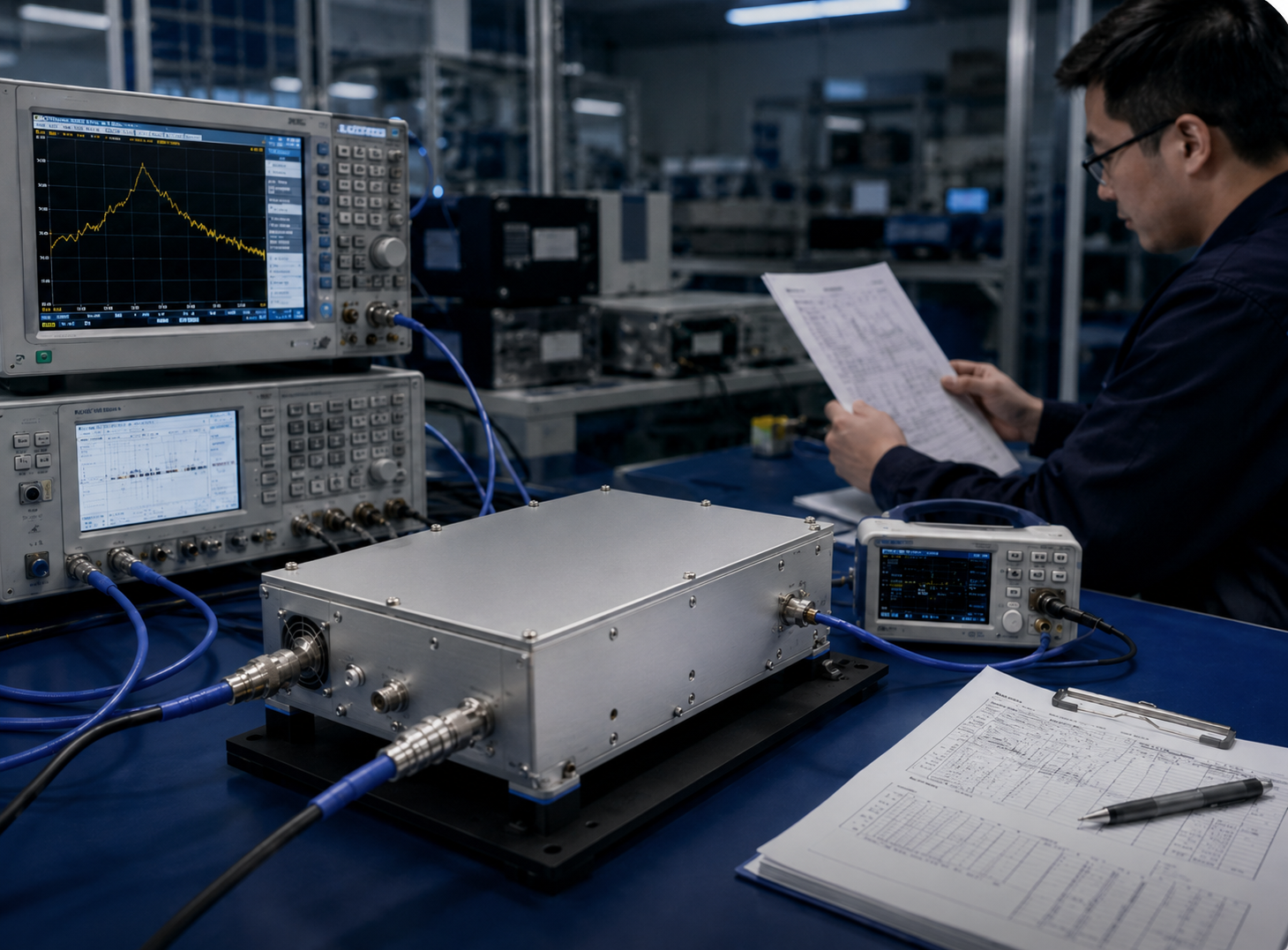

Output Power, Gain, VSWR and Protection
Amplifier validation can include output power, gain flatness, harmonics, spurious, current, thermal condition, VSWR protection and final QC review.

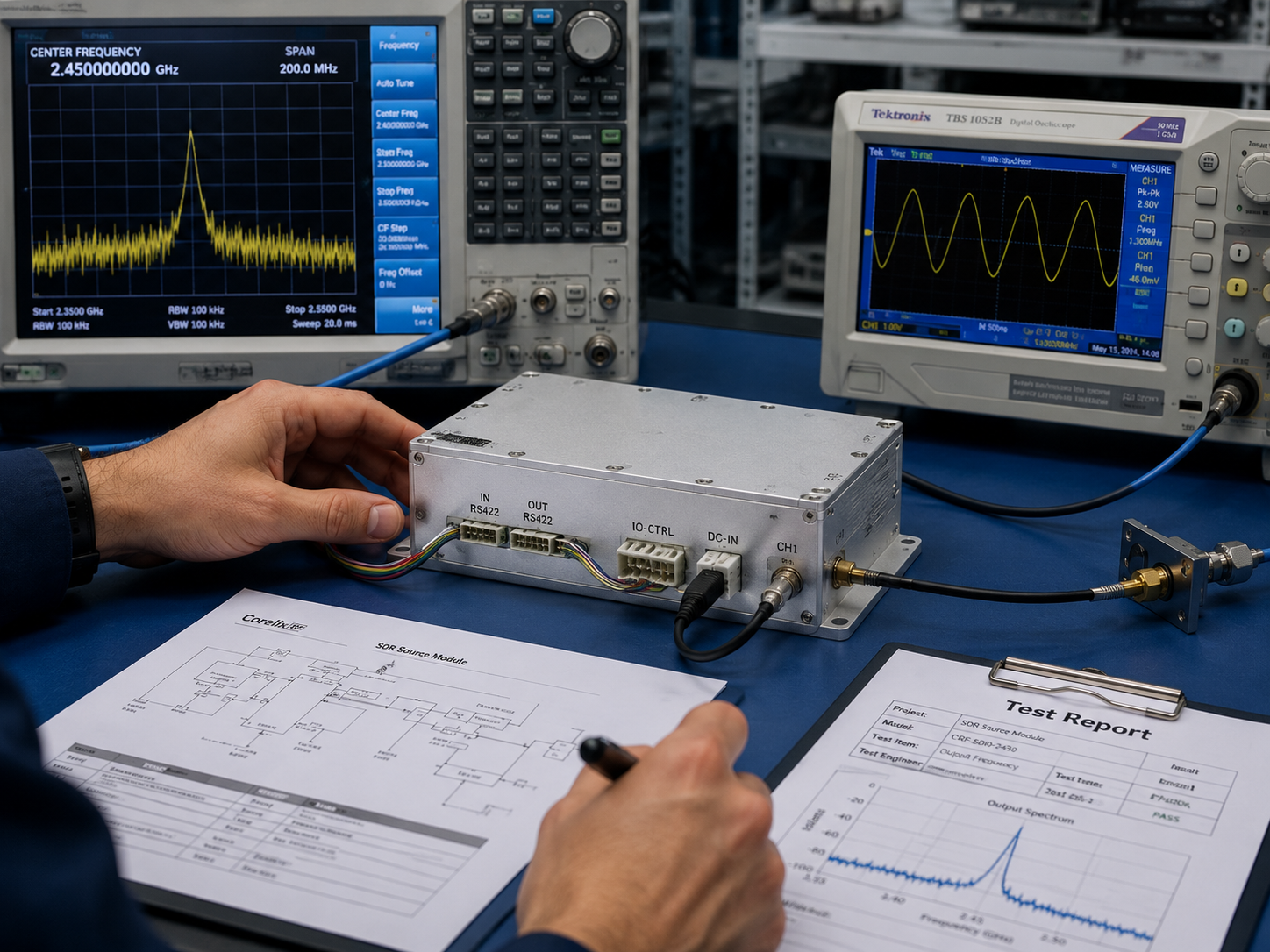

Frequency, Output Signal and Control Interface
SDR validation can include frequency coverage, signal output, waveform configuration, communication interface and board-level OEM integration review.

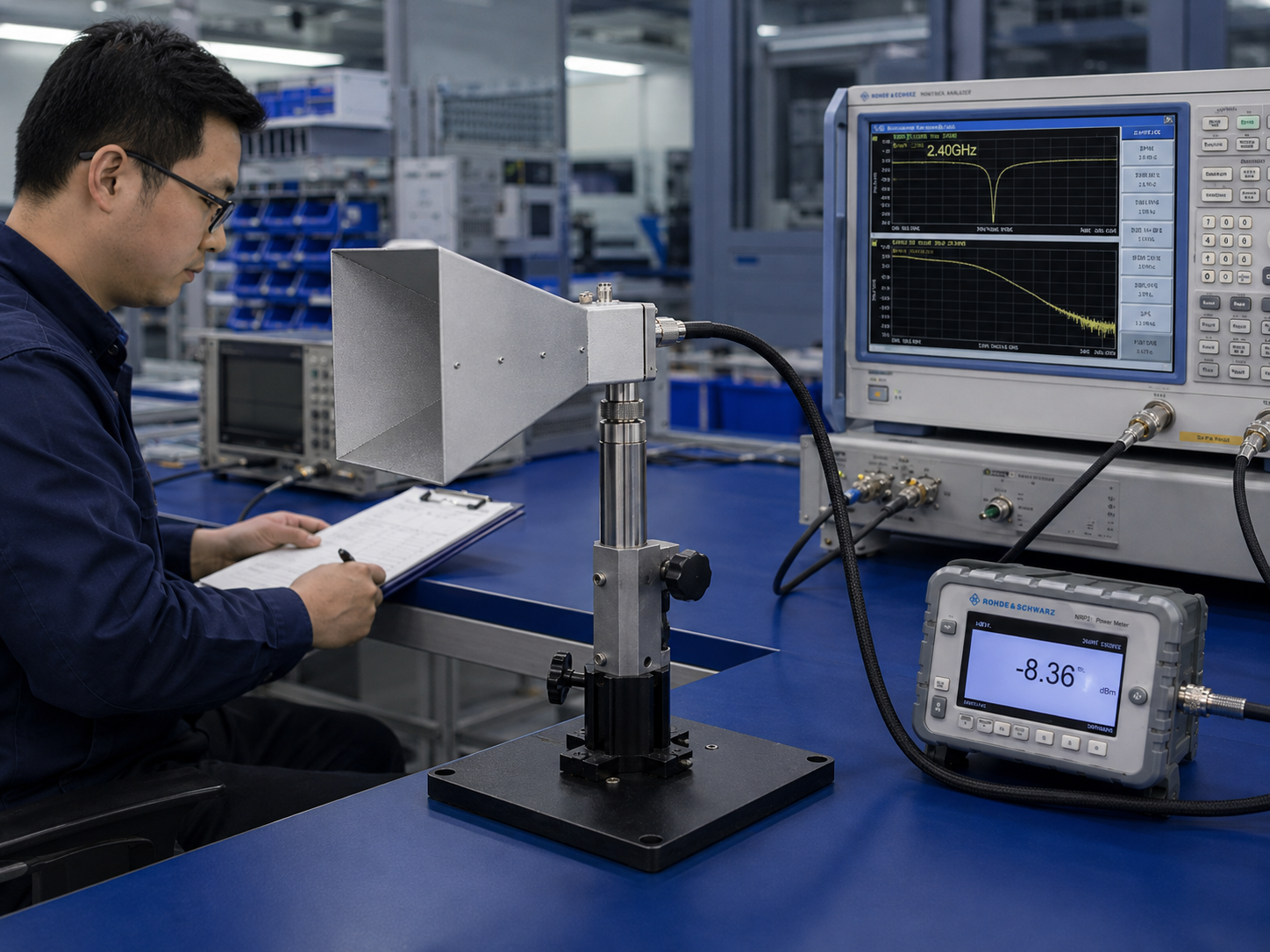

VSWR, Power Handling and Interface Check
Antenna validation can include VSWR, frequency matching, power handling review, connector condition, mounting structure and pattern-related documentation when required.

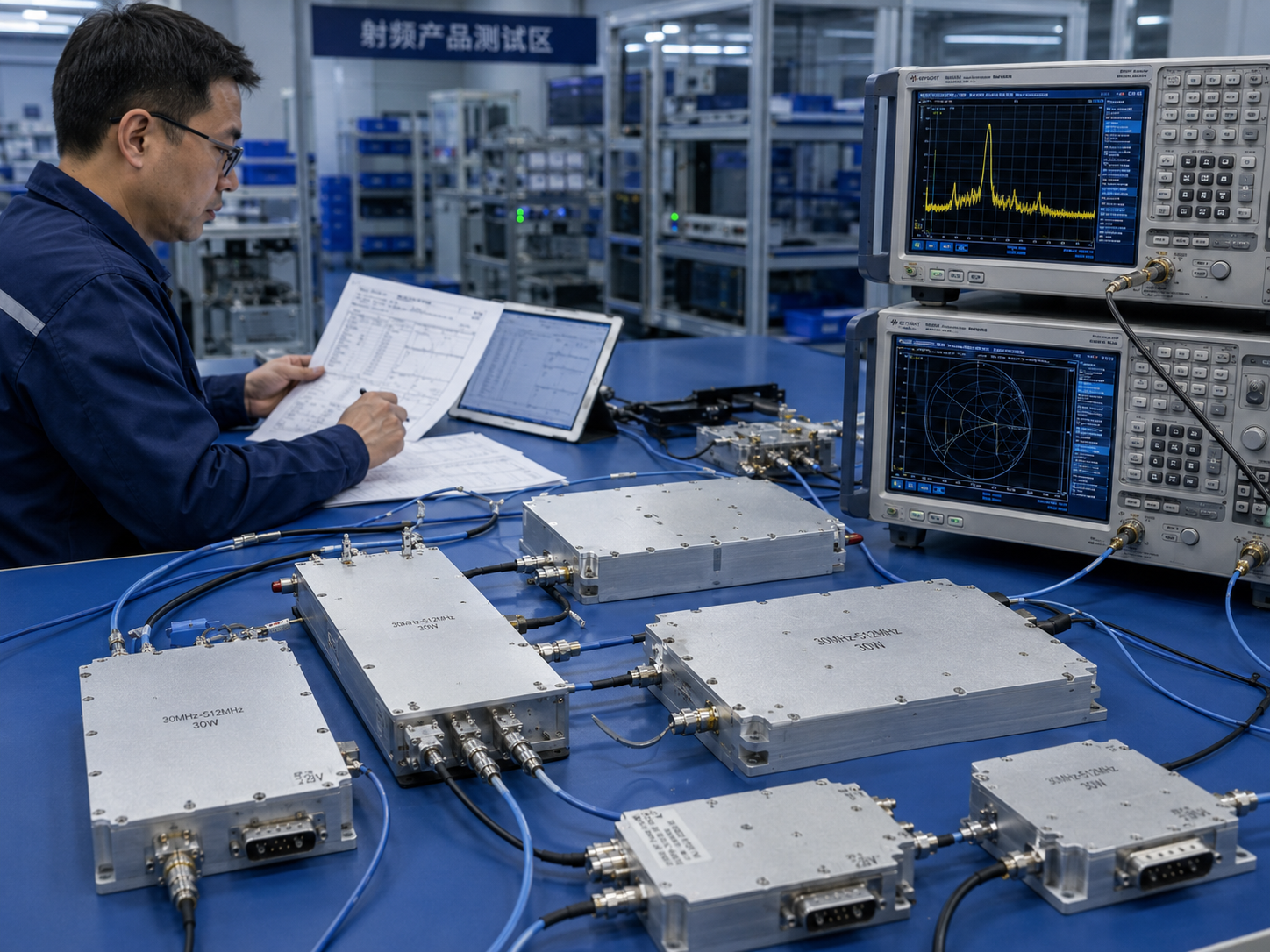

Chain Matching and System-Level Review
Integrated RF front-end validation can review amplifier, SDR, antenna, power supply, connector, cooling and documentation requirements together.

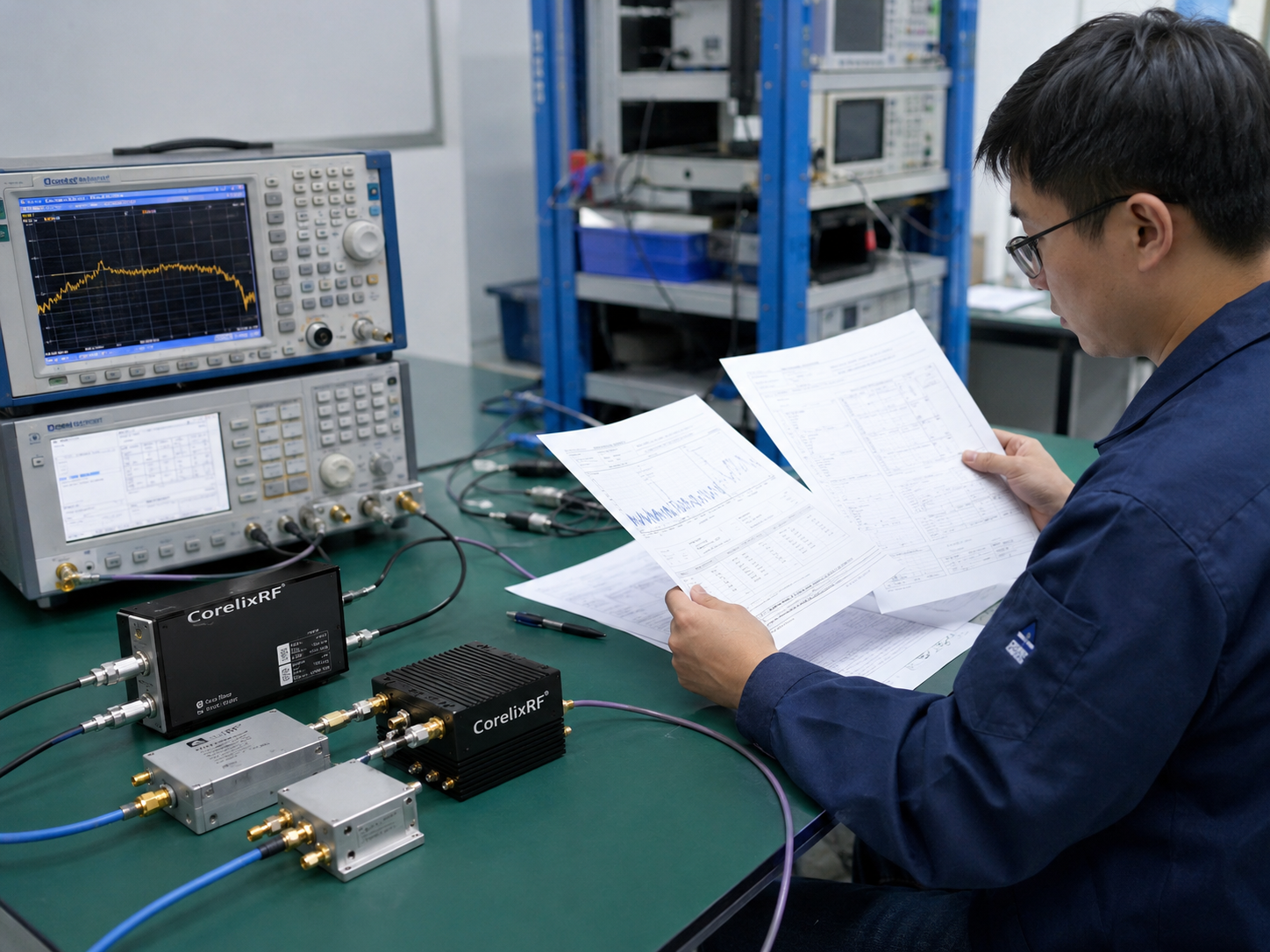

Documents That Help Engineering Buyers Review and Integrate RF Products
Documentation makes RF procurement easier to review internally. CorelixRF can provide technical and shipment-related documents depending on the product type, project stage and agreed delivery scope.
Datasheet
Technical specifications, product description and platform-level electrical and mechanical details.
Test Report
Measured RF performance records based on agreed test scope and project requirement.
Unit-Level Test Data
Shipment-specific measured data for qualified projects requiring unit-level validation.
Outline Drawing
Mechanical dimensions, mounting information and integration reference details.
Interface Notes
Connector, control, power supply and communication interface information for OEM integration.
User Manual
Operation notes, handling guidance, precautions and project-specific usage information.
QC / Inspection Record
Final inspection, connector review, visual check and before-shipment quality records.
CoC / Packing List
Certificate of conformity, packing list and shipment support documents when required.
Documents for Quotation, Shipment and OEM Integration Review
Different project stages require different documentation. CorelixRF can support technical review before quotation, validation before shipment and deeper integration documentation for OEM programs.
Requirement Review Package
- Requirement checklist
- Preliminary platform suggestion
- Basic datasheet or product summary
- Frequency and power feasibility review
- NDA technical discussion when required
Validation & QC Package
- Unit-level test data
- Final inspection record
- Test report based on agreed scope
- Certificate of conformity if required
- Packing list and shipment review
Integration Support Package
- Outline drawing
- Interface notes
- User manual or operation notes
- Connector and control information
- Project-specific technical notes

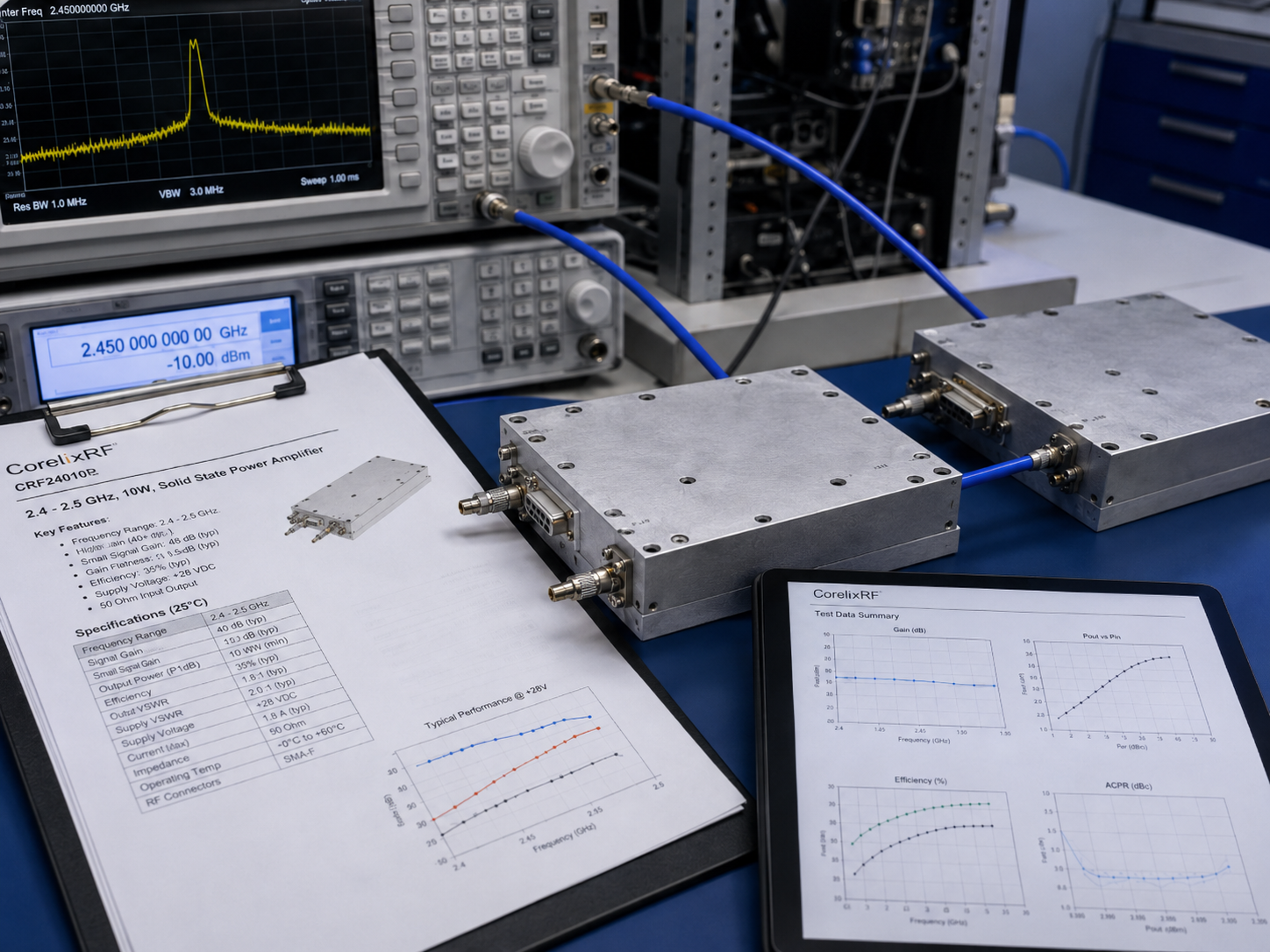

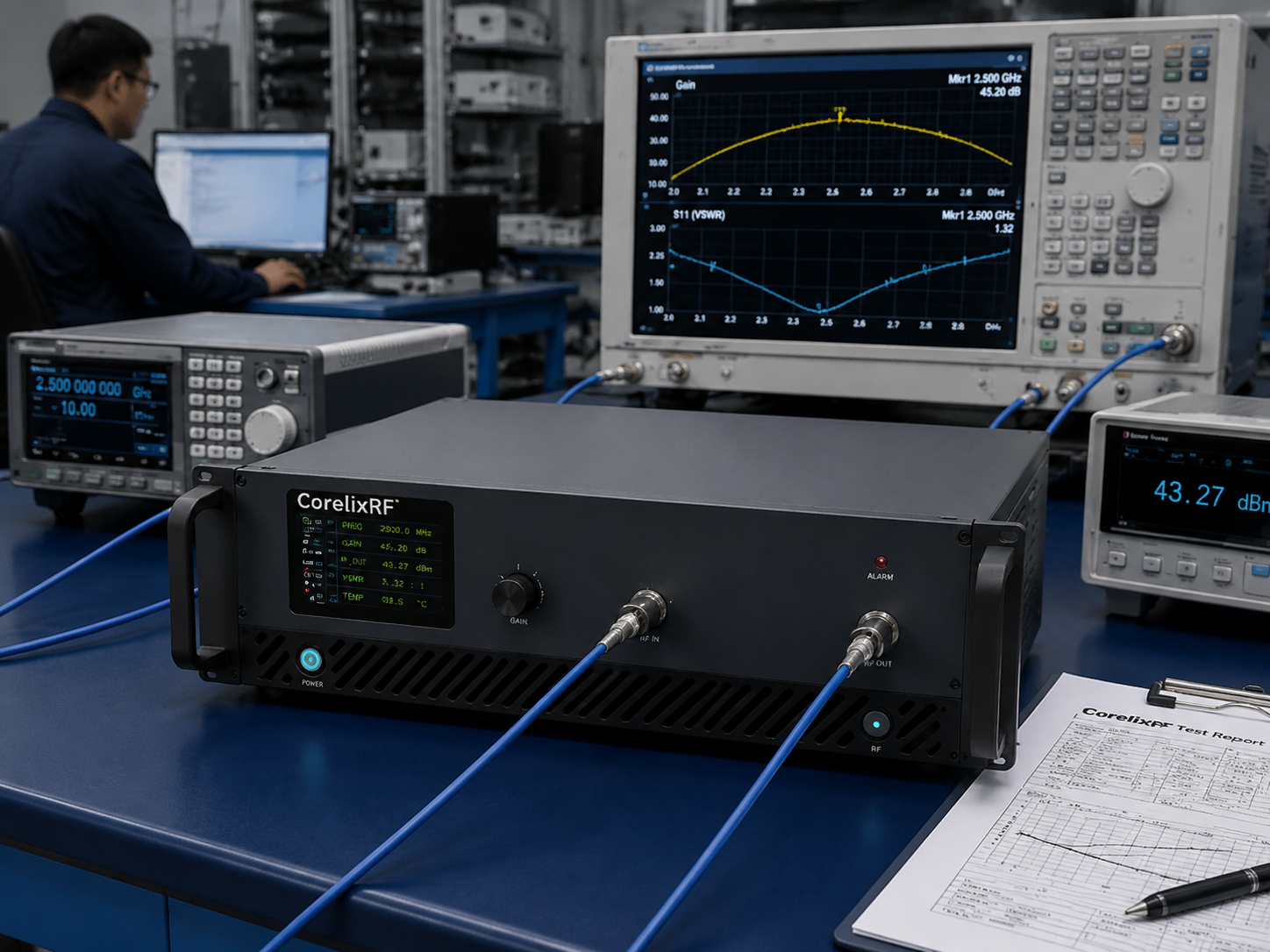

RF Test Instruments and Validation Setups
CorelixRF uses RF test setups and engineering validation equipment to support amplifier, SDR, antenna and RF system measurement requirements.
Signal Generators
RF signal source setup for amplifier, SDR and RF chain testing.
Spectrum Analyzers
Spectrum, harmonic, spurious and signal behavior review.
VNA / Network Analyzers
VSWR, frequency response and RF matching measurement.
Power Meters
RF output power and calibrated measurement support.
Directional Couplers
Forward and reflected power sampling in test chains.
Attenuators & RF Loads
High-power test chain protection and load simulation.
Oscilloscopes
Pulse mode, timing and control signal review.
Thermal / Aging Benches
Thermal stability, burn-in and reliability-related review.
From Test Requirement to Shipment Documentation
A structured testing and documentation workflow helps customers understand what has been checked before the product reaches their integration bench.
Requirement Confirmation
Confirm product type, frequency range, output power, operating mode, load condition and documentation needs.
Test Setup Preparation
Prepare signal source, measurement instrument, RF load, coupler, attenuator, cable and safety conditions.
RF Measurement
Measure key RF performance, including power, gain, VSWR, spectrum and platform-specific items.
Thermal / Stability Review
Review operating stability, thermal condition, duty cycle and cooling-related behavior where required.
Data Recording
Record measured results, inspection notes and project-specific validation information.
QC Review
Check connector condition, mechanical appearance, interface details and before-shipment quality items.
Documentation
Prepare datasheet, test report, unit-level data, drawings, interface notes or shipment documents.
Shipment Support
Support packing list, shipment review, documentation handover and follow-up integration communication.
How Testing and Documentation Reduce RF Purchasing Risk
Engineering buyers need more than a specification table. Testing records and documentation help confirm that the selected RF product can be accepted, integrated and reviewed by the customer’s engineering team.
Confirm Before Shipment
Key RF performance can be measured and reviewed before the product is shipped to the customer.
Support Internal Technical Approval
Datasheets, test reports and drawings help purchasing teams communicate with engineering decision makers.
Reduce Integration Surprises
Connector, mechanical, thermal and interface review helps reduce mismatch problems after delivery.
Improve OEM Project Traceability
Unit-level records, QC documents and shipment review materials support long-term project traceability.
RF Testing & Documentation Questions
Can CorelixRF provide test reports?
Yes. CorelixRF can provide RF test reports, unit-level measured data and shipment review records depending on the product type and agreed validation scope.
What RF parameters can be tested?
Testing can include output power, gain, gain flatness, input/output VSWR, harmonics, spurious, spectrum, current, efficiency, thermal stability, pulse behavior and protection functions.
Does this cover SDR modules and antennas?
Yes. Testing and documentation support can cover RF power amplifiers, SDR source modules, antenna platforms and integrated RF front-end or system projects.
What documents can be provided?
Documents may include datasheets, test reports, unit-level data, outline drawings, interface notes, user manuals, QC records, packing lists, certificates of conformity and before-shipment inspection records.
Can documentation support OEM integration?
Yes. Outline drawings, connector notes, control interface information and measured data can support OEM mechanical and system-level integration work.
Can testing scope be customized?
Yes. Test items can be adjusted based on frequency range, product type, operating mode, application environment and customer acceptance requirements.
Send Your Testing & Documentation Requirement
Share your product type, frequency range, output power, operating mode, required test items and documentation expectations. CorelixRF will help identify the appropriate validation and documentation path.
- Product type
- Frequency range
- Output power / signal level
- CW or pulse mode
- Required RF test items
- Mechanical / interface requirements
- Required documents
- Shipment or acceptance standard
Use the CTA button to open the inquiry popup. Attach datasheets, drawings, acceptance criteria or project notes if available so the engineering team can review your testing and documentation needs more accurately.
