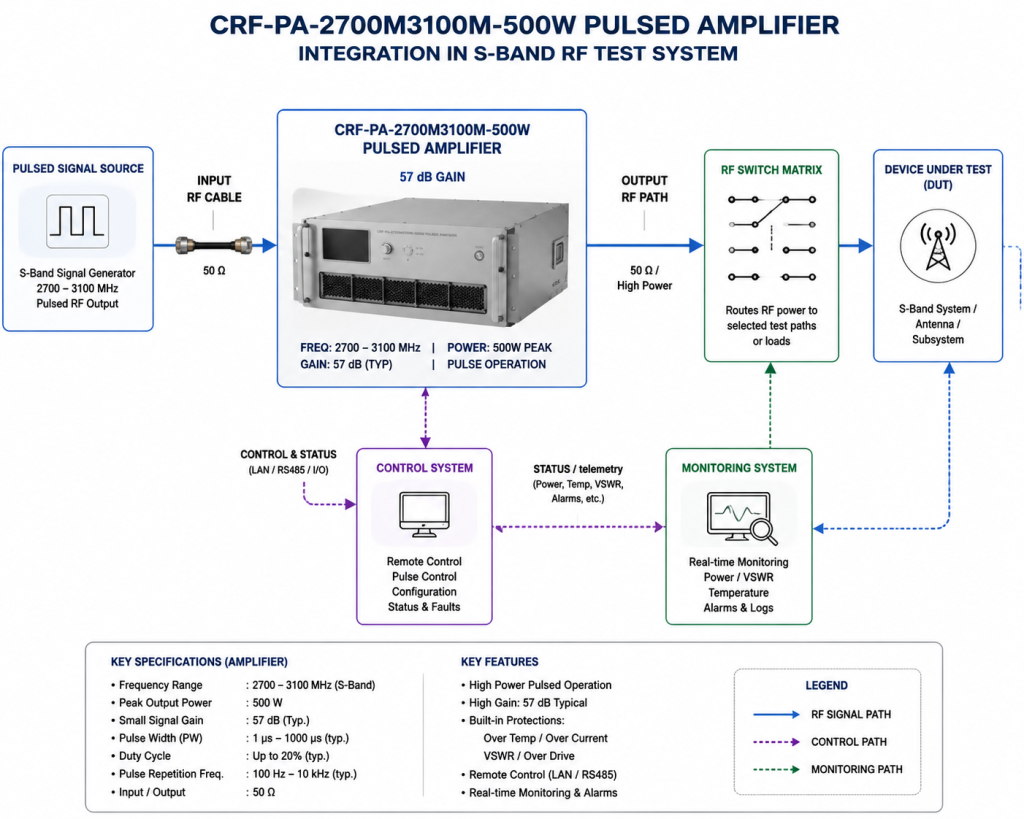

The CRF-PA-2700M3100M-500W S-band pulsed amplifier is a model to review when a project needs controlled 2700-3100 MHz pulsed RF output rather than a general CW broadband amplifier. It is relevant to S-band RF test chains, communication system validation, front-end evaluation, and project-based RF sensing development where pulse condition and thermal behavior must be defined before selection.
CorelixRF’s pulsed RF amplifier page lists CRF-PA-2700M3100M-500W as a 2700-3100 MHz platform with 500 W rated output, 57 dB gain, 50 microsecond pulse width, 10% duty cycle, RS485/LAN control, and 19-inch 3U / 18 kg structure. These public values are enough for initial screening, while final configuration and datasheet review should be matched to the project.
Why this S-band model should be reviewed by pulse condition

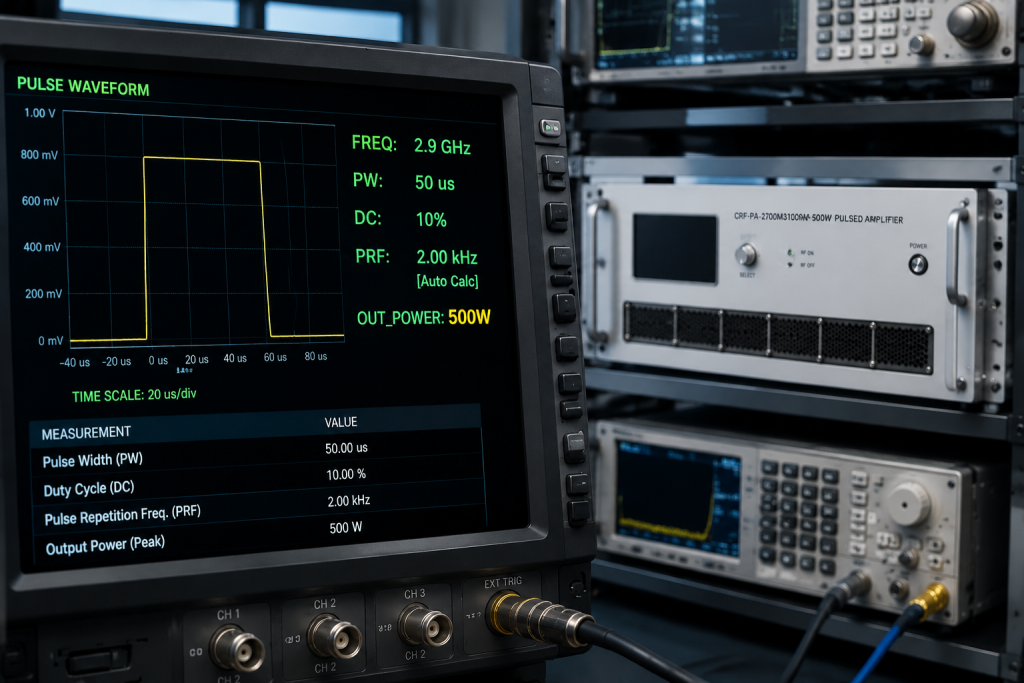

The most important RFQ detail is the actual pulse condition. The listed 50 microsecond pulse width and 10% duty cycle may fit some test platforms, but they are not a universal answer for every S-band chain. If your project needs a different pulse width, duty cycle, pulse repetition frequency, pulse timing, or rise/fall behavior, include those details.
CorelixRF states that pulsed RF amplifier projects are reviewed by frequency, power, pulse width, duty cycle, pulse frequency, thermal margin, protection logic, and control interface. This is the right procurement model because changing pulse conditions changes heating, power supply needs, protection behavior, and sometimes cabinet structure.
Confirm 2700-3100 MHz frequency fit
The 2700-3100 MHz band is a focused S-band window. Buyers should state whether the entire 400 MHz span is needed or whether the operating range is narrower. If the system includes filters, switches, waveguide or coax paths, antennas, or a test fixture, those items should be reviewed at the same time.
If the system needs CW or broader microwave coverage beyond pulsed operation, compare the requirement against CorelixRF’s 6-18 GHz RF power amplifier family. If the requirement is pulse-specific, stay with the pulsed RF amplifier review path.
Gain and input drive planning
The listed gain is 57 dB. The input source and driver stage must be reviewed so the amplifier receives appropriate drive without overdrive risk. Provide source output level, pulse generator or modulation method, cable loss before the amplifier, any driver amplifier, attenuator values, and required output level at the calibration plane.
For RF testing and validation, the acceptance setup should define how output power will be measured, which frequency points will be tested, and what pulse conditions will be used during factory or receiving inspection.

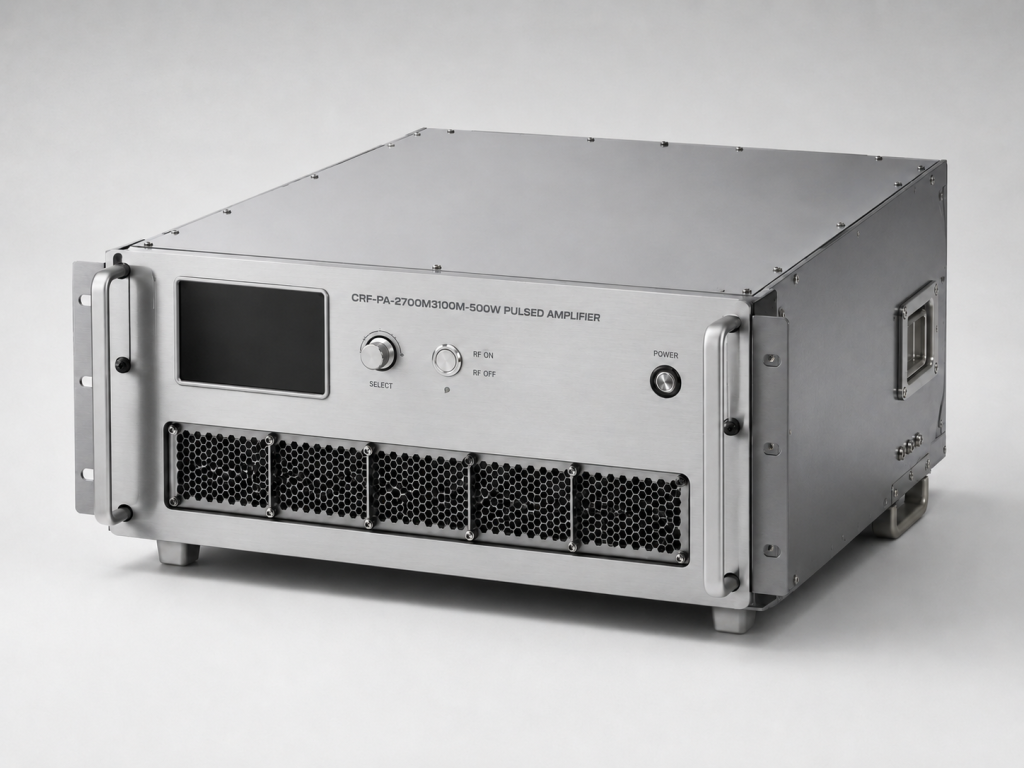

Rack, cooling, and installation details
The listed 19-inch 3U / 18 kg structure makes this a rack-level platform. The RFQ should include rack depth limits, airflow direction, ambient temperature, connector access, control wiring, and service clearance. Thermal review should be based on pulse width, duty cycle, repetition pattern, and operating duration.
Do not assume that a lower duty cycle in one test plan applies to every operating mode. If multiple pulse modes are required, list them separately and identify the worst thermal condition.
Control and monitoring
RS485/LAN control is listed for CRF-PA-2700M3100M-500W. Define whether the system needs remote control, enable/disable logic, alarm readback, forward/reverse power monitoring, input power detection, or automated test software integration.
If the system architecture requires a different interface or logic level, route the request through custom RF development before hardware is configured.
FAQ
What is the CRF-PA-2700M3100M-500W?
It is a CorelixRF 2700-3100 MHz S-band pulsed RF amplifier platform with 500 W rated output.
What pulse condition is listed?
CorelixRF lists 50 microsecond pulse width and 10% duty cycle for this model.
What gain is listed?
The public pulsed amplifier table lists 57 dB gain.
Is this a rack-mounted amplifier?
The page lists a 19-inch 3U / 18 kg structure for this model.

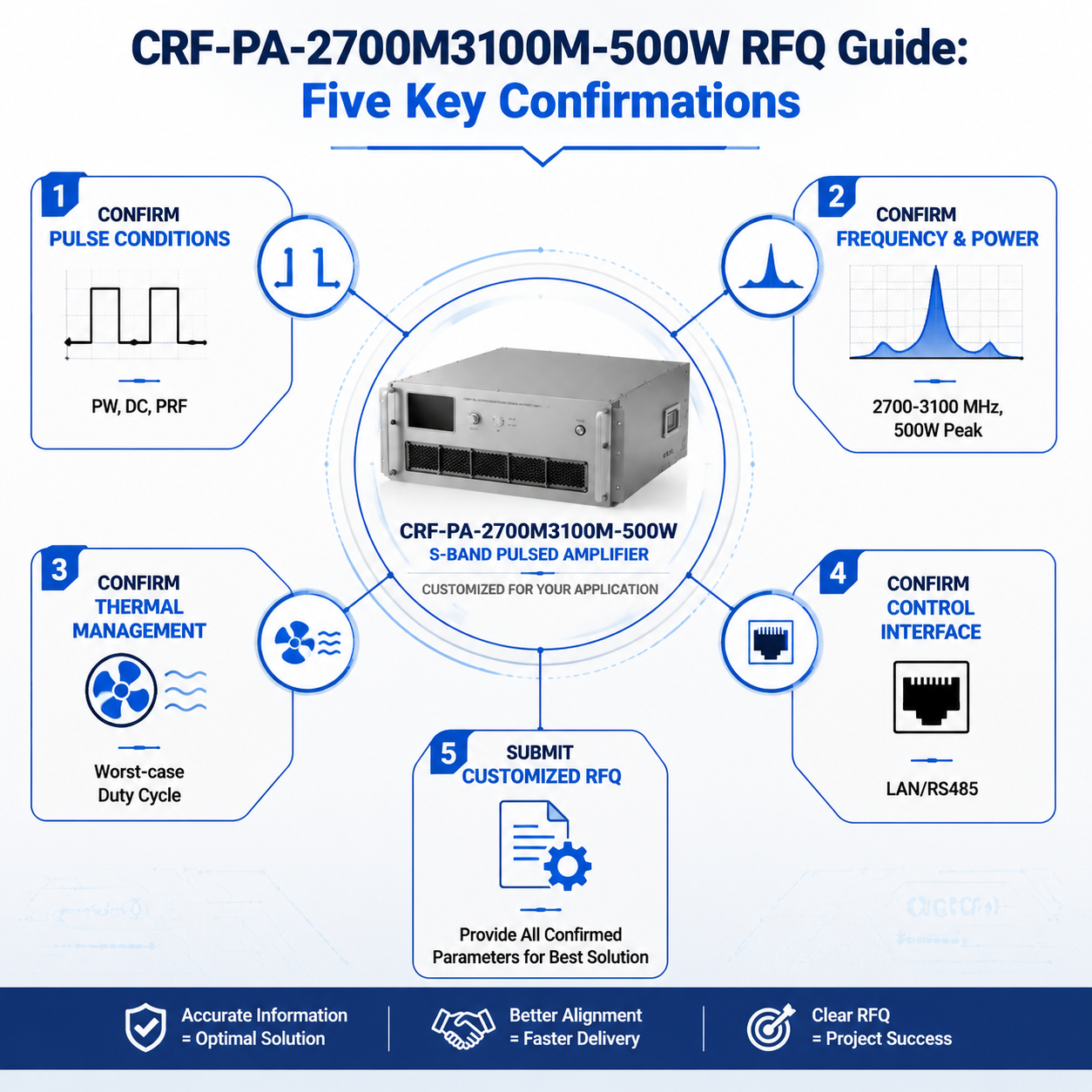

What should be confirmed before quotation?
Confirm frequency range, pulse width, duty cycle, pulse frequency, input level, output target, control interface, cooling, rack limits, and documentation needs.
Conclusion
The CRF-PA-2700M3100M-500W S-band pulsed amplifier is best specified with a complete pulse and integration profile. Frequency, 500 W rated output, 57 dB gain, 50 microsecond / 10% pulse reference, RS485/LAN control, cooling, and rack requirements should all be reviewed before the model is selected for a test system.
