How to Build a Drone Jammer: Professional RF Component Guide?

Composing a drone signal jammer requires the precise integration of a signal source, a power amplification stage, and a directional or omnidirectional antenna platform to disrupt the radio frequency links used by unmanned aerial vehicles (UAVs). Unauthorized drone incursions at corporate facilities or critical infrastructure pose a severe security vacuum that can lead to industrial espionage or physical safety breaches. If you rely on passive security measures alone, your airspace remains vulnerable to sophisticated aerial threats. To secure your perimeter effectively, you must understand the technical architecture behind how to build a drone jammer designed for professional-grade interference.

What are the primary modules needed for a drone jammer?

The primary modules required for a functional drone jammer include a software-defined signal source, a high-gain power amplifier, and a matched antenna platform. When you understand how to build a drone jammer, you recognize that the device must generate a noise signal that overpowers legitimate commands from the drone controller.

Signal Generation Units

The signal source serves as the logic center of your device. You must utilize a generator capable of sweeping across multiple frequency bands simultaneously to ensure no telemetry gaps remain.

• Voltage Controlled Oscillators (VCO)
• Software Defined Radio (SDR) modules
• Digital signal synthesizers
  Here is the deal:
  The accuracy of your signal source determines whether the interference hits the target frequency or bleeds into restricted civilian bands.

Power Amplification Stages

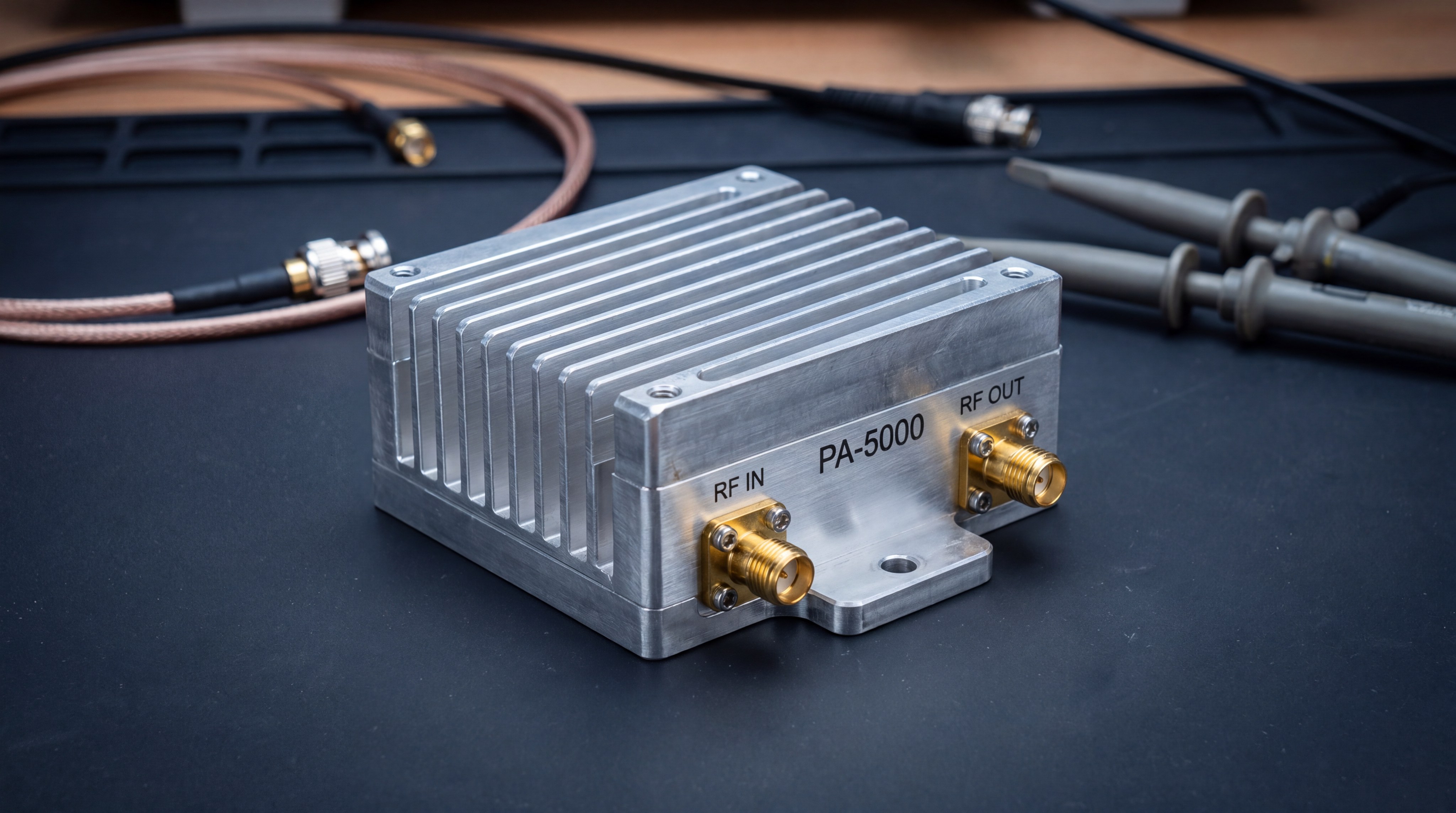

A raw signal from a generator lacks the strength to travel significant distances. You must integrate industrial-grade amplifiers to boost the output wattage to levels that can effectively mask drone navigation signals.

• GaN-based power modules
• LDMOS high-efficiency amplifiers
• Multi-stage gain blocks
  Think about it:
  Without sufficient power amplification, your jammer is essentially a localized device with no practical defense range.

The hardware selection phase is the most critical step in ensuring your system can handle the high-power demands of continuous RF disruption.

Key Takeaway: Professional drone jammers rely on a “brute force” methodology where high-output power modules drown out the low-power signals sent by standard UAV controllers.

Which frequency bands must your jamming system target?

Your jamming system must target the common ISM bands used for drone control and video transmission, specifically 2.4 GHz, 5.8 GHz, and various GNSS satellite navigation frequencies. You must research how to build a drone jammer that addresses the specific electronic landscape of the drones you intend to mitigate.

Commercial Control Frequencies

Most consumer drones utilize the 2.4 GHz and 5.8 GHz bands for both pilot control and high-definition video downlinks. You need to ensure your disruption covers these bands to force a drone into a “land” or “return to home” state.

• 2.400 – 2.483 GHz
• 5.725 – 5.850 GHz
• 900 MHz
  But that is not all:
  Newer industrial drones may use specialized frequencies, requiring your hardware to be flexible enough for future frequency shifts.

Navigation and GPS Bands

Disrupting a drone’s ability to navigate requires targeting the Global Navigation Satellite System (GNSS) frequencies. When you deny a drone its GPS coordinates, it loses the ability to perform automated flight paths or maintain a steady hover.

• GPS L1 (1575.42 MHz)
• GPS L2 (1227.60 MHz)
• GLONASS and BeiDou bands
  Look at this:
  Navigation jamming is often the most effective way to prevent a drone from reaching its target coordinates even if the controller link is strong.

Strategic frequency mapping ensures that you do not waste power on unused spectrum while leaving critical drone communication channels open.

Key Takeaway: A multi-band approach is mandatory because modern drones are designed to hop between different frequencies when they encounter interference on a single band.

How do you design the signal generation architecture?

Designing the signal generation architecture involves selecting a waveform source that can produce high-speed frequency sweeps or broadband white noise. To master how to build a drone jammer, you must choose between simple analog oscillators or advanced digital synthesizers for maximum spectral density.

Analog Sweep Generators

Analog generators use a sweeping voltage to move a signal back and forth across a target band very quickly. You find this method useful because it is cost-effective and creates a “barrage” of interference that is difficult for drones to ignore.

• Voltage tuning circuits
• Triangle wave modulators
• High-speed VCO components
  The secret is:
  The speed of the sweep must exceed the frequency-hopping rate of the drone to ensure the connection is broken every few milliseconds.

Digital Waveform Synthesis

Digital systems allow you to program specific noise patterns or even de-authentication packets. You can use this precision to target specific drone models without disrupting every other device in the 2.4 GHz spectrum.

• FPGA-based signal processing
• Software Defined Radio (SDR)
• Pre-programmed noise profiles
  Wait for it:
  Digital synthesis offers the highest level of control, allowing you to update the jammer’s “library” as new drone models enter the market.

Advanced signal generation transforms a simple noise-maker into a tactical security tool capable of responding to evolving UAV flight protocols.

Key Takeaway: Digital signal sources provide the longevity required for industrial applications, as they can be updated via software to counter new frequency-hopping algorithms.

What role do power amplifiers play in effective jamming?

Power amplifiers act as the engine of the jammer, converting the low-power signal from the generator into a high-wattage transmission that can project over long distances. You must prioritize high-efficiency modules when learning how to build a drone jammer to prevent your system from overheating during extended operations.

Wattage and Effective Range

The range of your jammer is directly proportional to the output power of your amplifier modules. You typically require at least 10W to 20W per band to achieve a 500-meter disruption radius in clear line-of-sight conditions.

• Output power (Watts)
• Gain (decibels)
• Saturated power levels
  Here is the deal:
  Doubling your power does not double your range; rather, it overcomes environmental signal loss and the drone’s own internal signal filters.

Linearity and Spectral Purity

While jammers generate “noise,” the amplifier must still maintain a level of spectral purity to avoid “splatter” into unauthorized bands. You should look for amplifiers with good gain flatness to ensure the jamming is equally powerful across the entire band.

• P1dB compression points
• Harmonic suppression
• Intermodulation distortion
  Think about it:
  An inefficient amplifier generates more heat than signal, which will eventually lead to component failure and reduced defensive uptime.

The choice of amplifier technology dictates the physical size, power consumption, and cooling requirements of your finalized counter-drone system.

Key Takeaway: Sourcing high-quality power amplifiers is the most significant investment in the construction of a professional-grade jammer designed for 24/7 security.

Why is thermal management critical for high-power units?

Thermal management is critical because the RF power amplifiers used in jammers generate massive amounts of waste heat that can destroy internal circuitry. If you ignore cooling while researching how to build a drone jammer, your system will likely fail within the first few minutes of high-power transmission.

Passive Cooling Solutions

Passive cooling uses physical materials like aluminum heat sinks to draw heat away from the sensitive GaN or LDMOS chips. You must ensure that the surface area of your heat sinks is sufficient for the total wattage your system produces.

• Extruded aluminum fins
• Copper heat spreaders
• Thermal interface materials (TIM)
  Look at this:
  For mobile jammers, the outer casing often doubles as the primary heat sink to save weight and space.

Active Cooling and Airflow

High-wattage systems often require active cooling, such as high-RPM fans, to move hot air out of the enclosure. You need to design an airflow path that prevents “hot spots” around the power supply and the output stages.

• Variable speed DC fans
• Internal air ducting
• Thermal sensors and cutoffs
  But that is not all:
  Advanced systems use liquid cooling blocks for multi-kilowatt jammers used at airports or large-scale military installations.

Effective thermal design ensures that your hardware maintains its specified power output without throttling or sustaining permanent damage from heat soak.

Key Takeaway: Heat is the primary enemy of RF electronics; professional jammers often devote more physical space to cooling than to the actual signal modules.

How do you choose the right antenna for drone defense?

Choosing the right antenna depends on whether you need a 360-degree protective bubble or a focused beam to target drones at extreme distances. You should evaluate how to build a drone jammer using both omnidirectional and high-gain directional platforms to suit your facility’s layout.

Omnidirectional Protective Bubbles

Omnidirectional antennas transmit signal in all directions simultaneously, creating a secure zone around your location. You find these most effective for mobile security teams who need protection while on the move.

• Dipole antennas
• Monopole arrays
• Fiberglass whip antennas
  The secret is:
  Because the energy is spread in all directions, the effective range is much shorter than that of a directional system.

Directional Gain and Precision

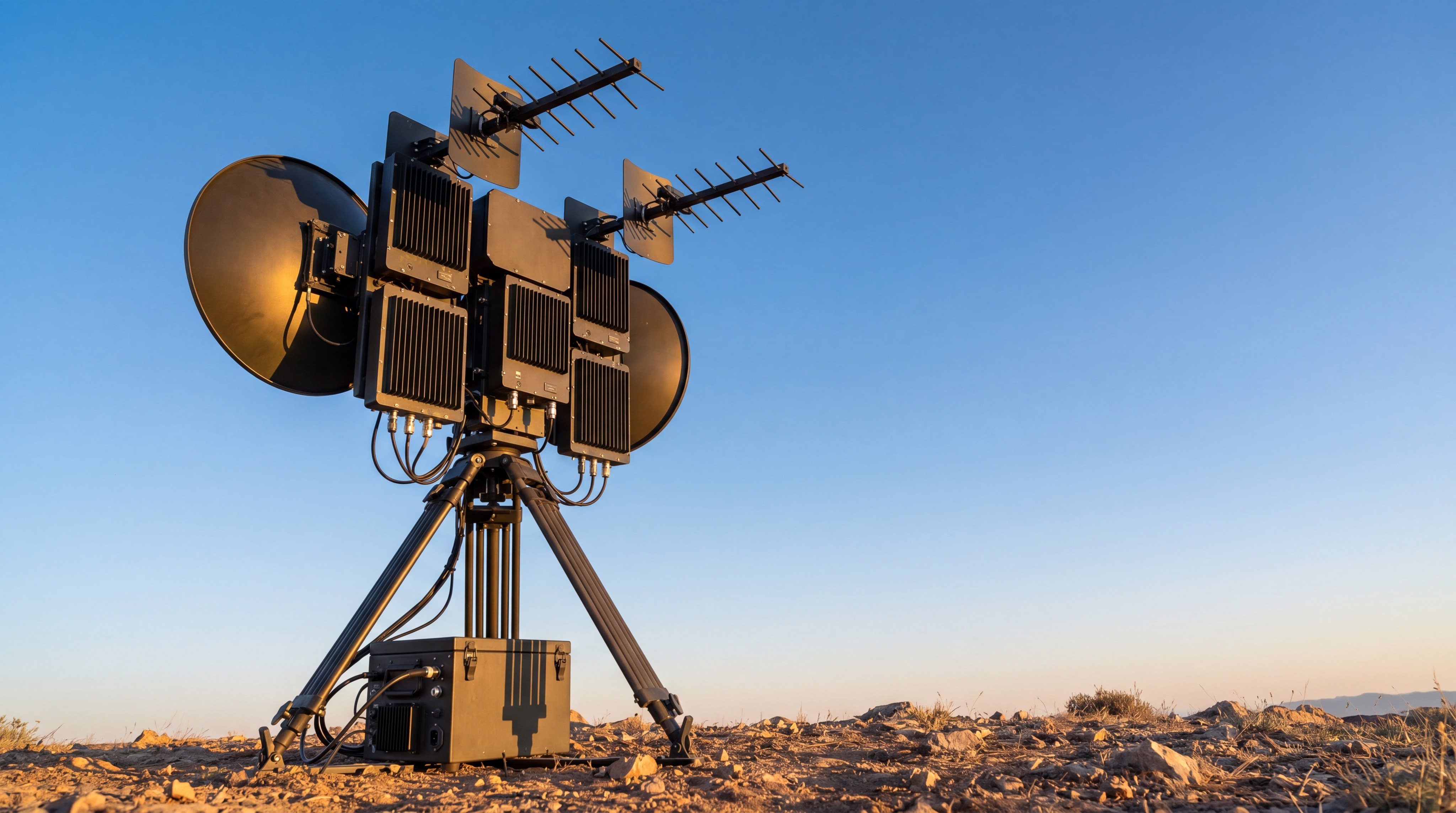

Directional antennas focus all the jamming energy into a narrow beam, significantly increasing the effective range. You can use these to “snip” a drone out of the sky from over a kilometer away if you have accurate aiming capabilities.

• Yagi-Uda antennas
• Log-periodic arrays
• High-gain patch panels
  Wait for it:
  Directional antennas also reduce the risk of interfering with your own local WiFi networks located behind the jammer.

Selecting the correct “lens” for your RF energy allows you to maximize the efficiency of every watt produced by your power amplifiers.

Key Takeaway: Use omnidirectional antennas for general perimeter protection and directional antennas for targeted mitigation of specific aerial threats.

What are the steps for multi-band RF system integration?

Multi-band RF system integration involves combining various frequency modules into a single enclosure with a shared power supply and control logic. When investigating how to build a drone jammer, you must focus on preventing internal interference between the different frequency channels.

RF Combiners and Duplexers

To use a single antenna for multiple bands, you need an RF combiner. This component merges the signals from your 2.4 GHz and 5.8 GHz modules while preventing “leakage” that could damage the sensitive output stages of the amplifiers.

• Low-loss power combiners
• Frequency diplexers
• High-power RF switches
  Look at this:
  Poorly integrated systems often lose up to 50% of their power simply through heat generated in low-quality connectors and cables.

Power Distribution and Shielding

Your power supply must be robust enough to handle the simultaneous current draw of all active bands. You also need internal EMI shielding between modules to ensure the 5.8 GHz signal doesn’t disrupt the control logic of the lower-frequency stages.

• DC-DC buck converters
• Aluminum internal dividers
• Shielded coaxial cabling
  But that is not all:
  A modular integration approach allows you to swap out a single failed band module without having to decommission the entire jamming system.

Successful integration creates a cohesive system that behaves as a single defensive unit rather than a collection of uncoordinated parts.

Key Takeaway: Professional integration requires high-quality coaxial interconnects and precision-milled enclosures to maintain signal integrity across multi-kilohertz bandwidths.

How can you verify the jammer’s disruption performance?

Verifying disruption performance requires using a spectrum analyzer to ensure your jammer is outputting the correct power levels across the intended frequencies. You must test how to build a drone jammer in a controlled environment to confirm that the noise floor is high enough to mask control signals.

Spectral Analysis and Monitoring

A spectrum analyzer allows you to “see” the interference you are creating. You can verify that your sweep speed is correct and that there are no “nulls” in the frequency band where a drone signal might slip through.

• Real-time bandwidth testing
• Power spectral density checks
• Occupied bandwidth measurement
  Think about it:
  If your spectrum analyzer shows gaps in the noise, a sophisticated drone will simply hop into those gaps to maintain its connection.

Field Range Validation

After lab testing, you must conduct field tests to measure the “jamming-to-signal” ratio at various distances. You need to confirm that the jammer can overcome the drone’s controller signal even when the pilot is close to the UAV.

• Line-of-sight range checks
• Obstruction penetration tests
• Fail-safe triggering speed
  Here is the deal:
  Performance verification is an ongoing process, as environmental factors like humidity and urban structures can significantly alter RF propagation.

Rigorous verification ensures that your security personnel can rely on the equipment when a real unauthorized drone enters protected airspace.

Key Takeaway: Validation is the only way to prove your system works; a jammer that looks functional on a bench may fail in the field without proper spectral tuning.

What legal and safety standards govern signal jamming?

Signal jamming is governed by strict regulatory frameworks that vary by country, often restricting usage to government, military, or authorized law enforcement agencies. You must verify local compliance before learning how to build a drone jammer to avoid severe legal penalties and potential interference with emergency services.

Regulatory Oversight and Licensing

In many jurisdictions, transmitting on ISM bands at high power levels requires a specific license. You should consult with legal experts to determine if your facility qualifies for the use of counter-UAS technology under current local laws.

• National spectrum authorities
• Communications commissions
• Aviation safety regulations
  Look at this:
  Unauthorized jamming can disrupt local cellular networks and emergency radio channels, leading to significant liability for your organization.

Operational Safety Protocols

Safety isn’t just about legality; it’s about protecting the operator from RF radiation. You must ensure your system is properly shielded and that personnel remain at a safe distance from high-gain antennas during operation.

• RF exposure limits (SAR)
• Directional exclusion zones
• Emergency kill switches
  Wait for it:
  Proper training ensures that your security team knows how to deploy the jammer without causing collateral damage to friendly electronics.

Maintaining a strict adherence to legal and safety standards protects your organization’s reputation and ensures the jammer is used as a precise security tool.

Key Takeaway: Compliance is as critical as technical performance; always operate within the legal boundaries of your specific region and industry.

How is counter-UAS technology evolving for the future?

Counter-UAS technology is evolving toward “smart jamming” systems that use Artificial Intelligence to identify and target drones with surgical precision rather than broad noise. You should monitor these trends when considering how to build a drone jammer for long-term security infrastructure.

AI and RF Signature Recognition

Future systems will be able to identify the exact make and model of a drone by its unique electronic fingerprint. This allows the jammer to apply a specific protocol-aware disruption that uses much less power and causes less collateral interference.

• Machine learning libraries
• Signal classification algorithms
• Automated threat response
  But that is not all:
  AI-driven systems can also distinguish between “friendly” drones and unauthorized intruders, allowing your own aerial operations to continue unimpeded.

GNSS Spoofing and Redirection

Beyond simple jamming, spoofing involves sending fake GPS coordinates to a drone. You can use this to trick a drone into landing in a safe zone or flying away from your facility without the operator ever realizing they have lost control.

• Coordinate manipulation
• Time-syncing technology
• Dynamic pathing overrides
  The secret is:
  Spoofing is technically much more difficult than jamming but offers a higher level of control over the intruder’s eventual destination.

Staying ahead of the technology curve ensures that your facility remains protected against the next generation of autonomous and “swarm” drone threats.

Key Takeaway: The industry is moving from “noise” to “intelligence,” where software-defined systems provide the flexibility needed to counter increasingly autonomous UAVs.

Conclusion

This article has detailed the architectural requirements for composing a professional-grade drone signal jammer, from frequency selection and power amplification to antenna integration and legal compliance. By understanding these technical layers, you can transition from a vulnerable security posture to a proactive defense strategy. At CorelixRF, we are empowering global security through RF innovation, providing the high-performance modules and engineering expertise required for critical infrastructure protection. If you are ready to secure your airspace against evolving UAV threats, contact us today to discuss custom RF solutions tailored to your facility.
