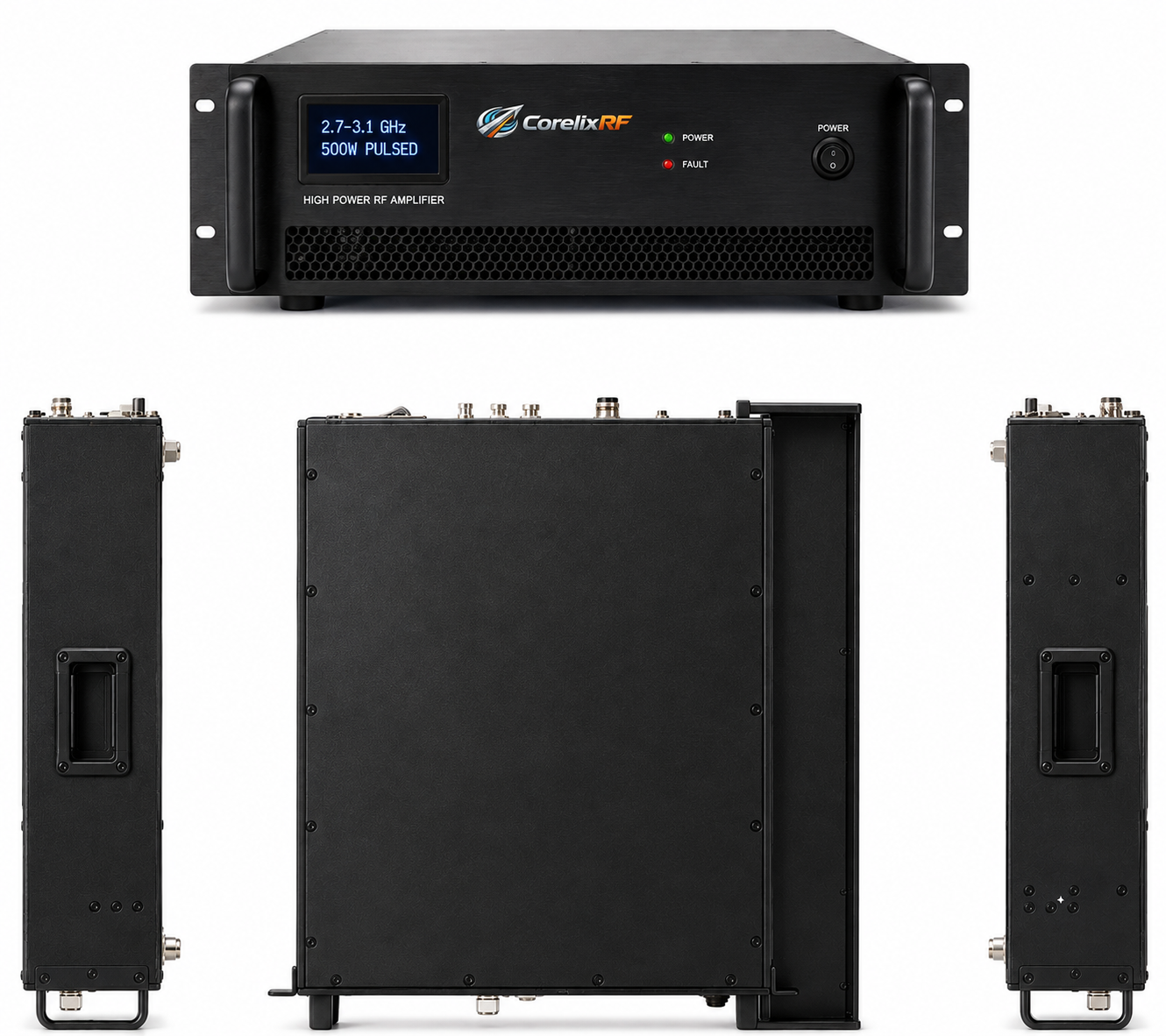

A 2.7-3.1 GHz amplifier is often reviewed as an S-band pulsed RF power stage where frequency, peak output, pulse width, duty cycle, and rack integration are inseparable. CorelixRF CRF-PA-2700M3100M-500W is specified for 2,700-3,100 MHz operation, 500 W rated pulsed output, 50 us typical pulse width, 10% duty cycle, 57 dB minimum gain, SMA-Female input, N-Female output, RS485 / LAN control, and a 3U rack-mount air-cooled format.
The model belongs naturally on CorelixRF’s pulsed RF amplifier platform path and can support buyers who need a datasheet-backed starting point for S-band test integration.
Why Pulse Conditions Define the Amplifier Choice
S-band pulsed systems are sensitive to both RF and timing conditions. A model that appears correct by frequency and wattage still needs review for pulse width, duty cycle, input drive, output path, protection response, and thermal behavior.
CorelixRF’s public content frames S-band pulse models as engineering review platforms rather than generic off-the-shelf promises. This is useful for SEO because the article can answer buyer questions while keeping technical claims tied to the datasheet.
How Engineers Should Review This Pulsed RF Amplifier
For this model, the 50 us / 10% duty condition should be compared against the planned test waveform. If the project will use a different pulse pattern, that should be stated before quote review.
The datasheet lists 57 dB gain, 20 dB maximum gain control, 2 dBm maximum input power, -30 dBc harmonics, and -60 dBc spurious maximum. These numbers should guide acceptance planning and source-level setup.
Confirm peak power, pulse width, and duty cycle together
Do not evaluate 500 W output separately from pulse timing. Peak output, duty cycle, repetition behavior, and cooling determine whether the amplifier fits the system.

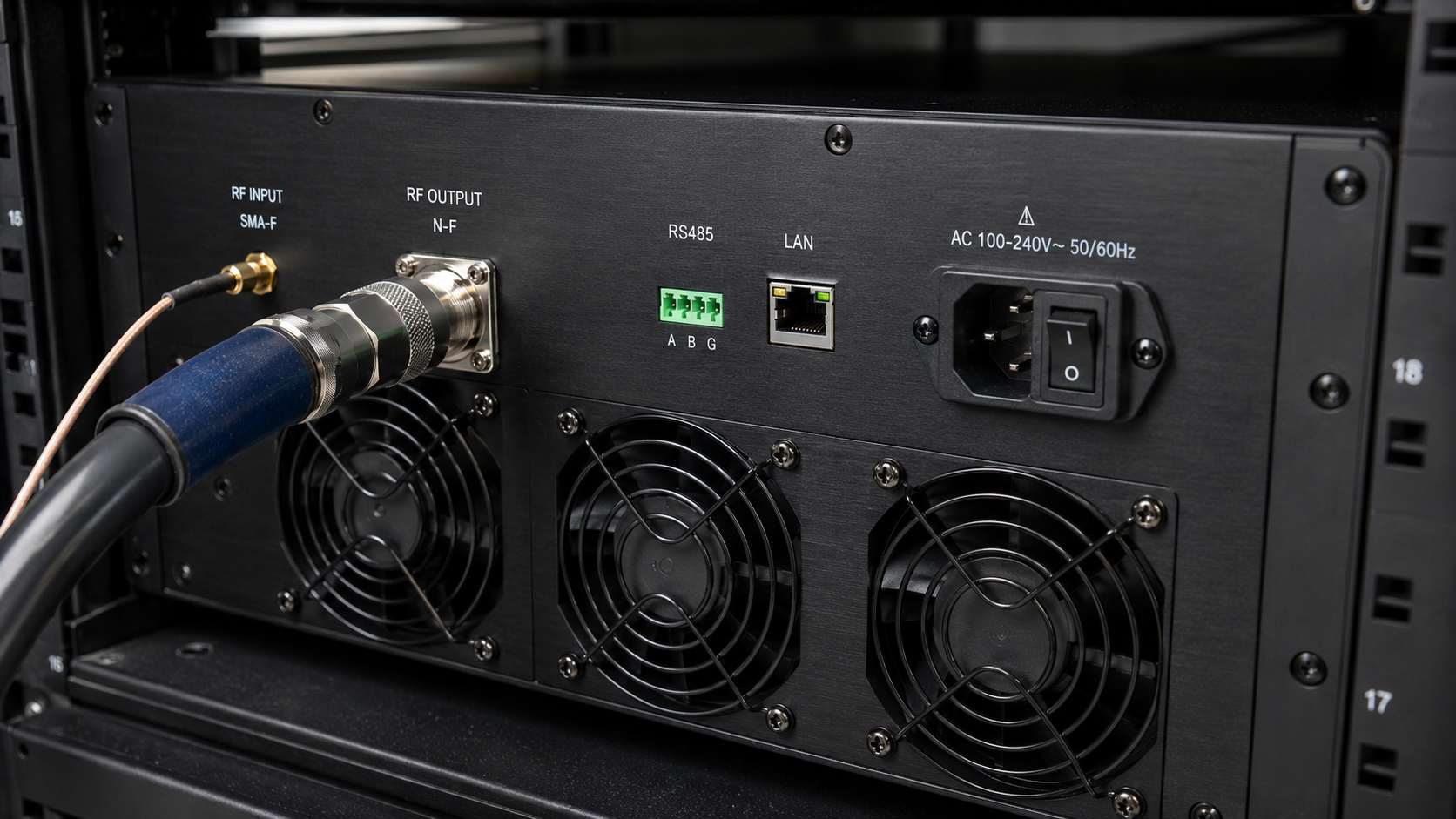

Review the RF interface and load path early
The SMA input and N-Female output require different thinking on each side of the amplifier. The low-level input path needs drive control; the output path needs power-rated components and a known load.
Treat cooling and facility requirements as RF requirements
A 3U air-cooled rack unit can be convenient, but rack airflow must be protected. Avoid blocked inlets, hot exhaust recirculation, and unknown ambient conditions.

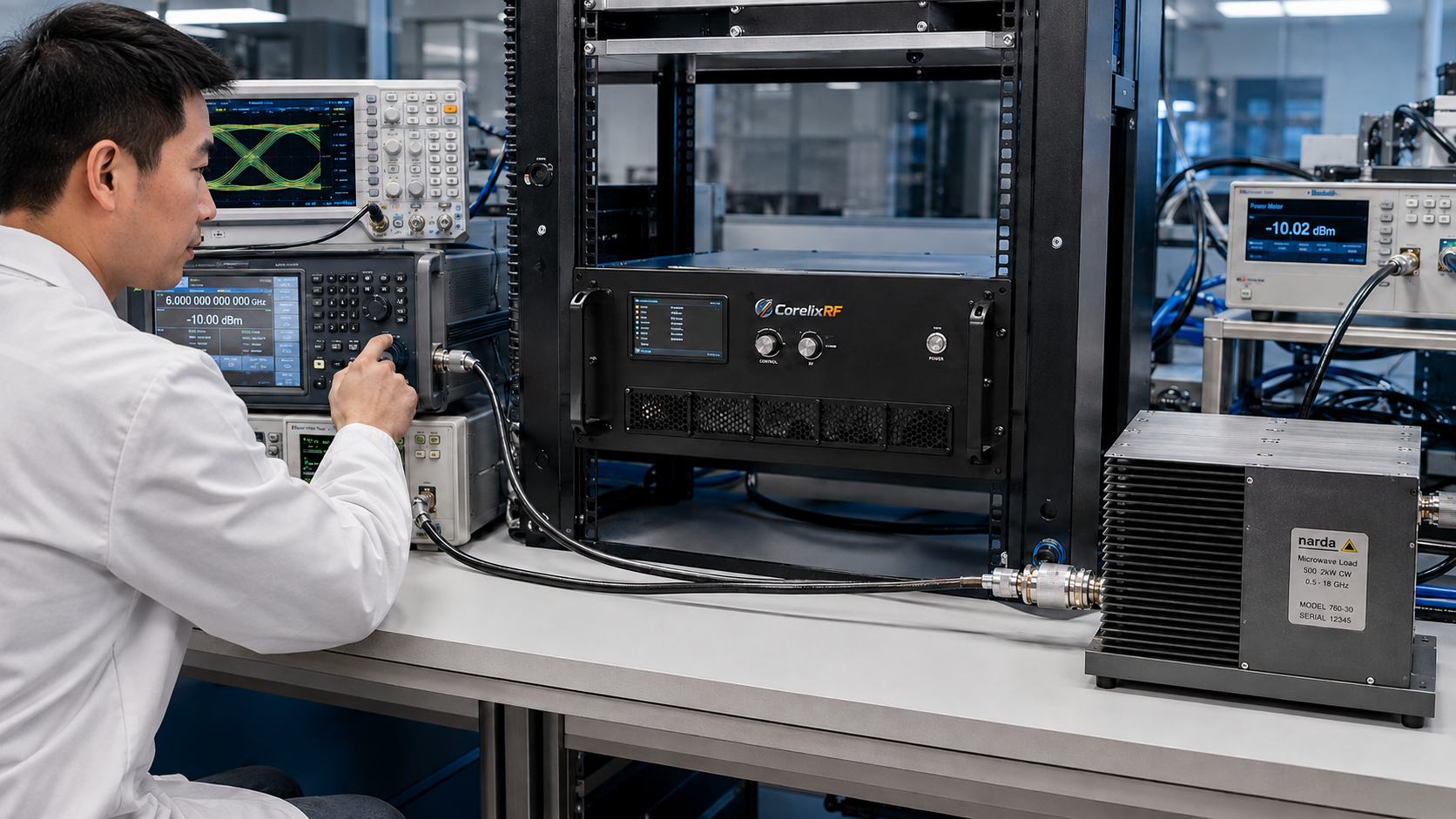

Integration Notes for Test, Radar Simulation, and RF System Validation
This amplifier can support S-band lab testing, communication verification, and authorized radar simulation or pulsed RF validation projects. The buyer should define whether the amplifier is driving a load, fixture, subsystem, or antenna path.
For projects that grow beyond 3.1 GHz or require much higher peak power, the related CorelixRF article on specifying a 25 kW pulsed RF amplifier is a useful internal comparison point.
Control, monitoring, and protection planning
RS485 / LAN control should be considered early if the amplifier will be part of an automated test station. Optional power monitoring and input detection can help with closed-rack validation.
RFQ details to prepare before requesting a recommendation
Before asking for a quote, provide frequency range, target peak output power, pulse width, duty cycle, pulse repetition behavior, input drive level, connector preference, load VSWR, cooling method, control interface, monitoring requirements, mechanical envelope, and required acceptance documents. CorelixRF’s RF amplifier RFQ checklist is the practical place to turn these points into a review package.
Where This Model Fits in CorelixRF’s Pulsed Platform Path
CRF-PA-2700M3100M-500W is a focused S-band 500 W pulsed platform. It is a closer match than a wideband amplifier when the buyer knows the operating window is 2.7-3.1 GHz.
Use CorelixRF Contact when the requirement includes custom timing, connector, monitoring, or mechanical expectations.
FAQ
Is CRF-PA-2700M3100M-500W a pulsed RF power amplifier?
Yes. The local datasheet identifies it as a solid-state pulsed RF power amplifier and lists model-specific pulse width and duty cycle conditions.
Can the pulse width or duty cycle be changed?
Pulse conditions are project-sensitive. The datasheet values should be treated as the supplied configuration baseline; any different pulse width, duty cycle, timing behavior, or thermal margin should be reviewed with CorelixRF before quotation.
What information matters most for a pulsed amplifier RFQ?
Frequency, peak output power, pulse width, duty cycle, pulse repetition behavior, source drive level, load VSWR, cooling method, control interface, and acceptance test points matter more than a single wattage number.
Does this article claim stock, certification, or customer results?
No. It only uses the local CorelixRF datasheet and public CorelixRF platform direction. Stock, lead time, compliance documentation, and project test data must be confirmed directly by CorelixRF.
Where should buyers send requirements?
Use the CorelixRF Contact page and include frequency, pulse condition, power, cooling, interface, mechanical, and documentation requirements.
