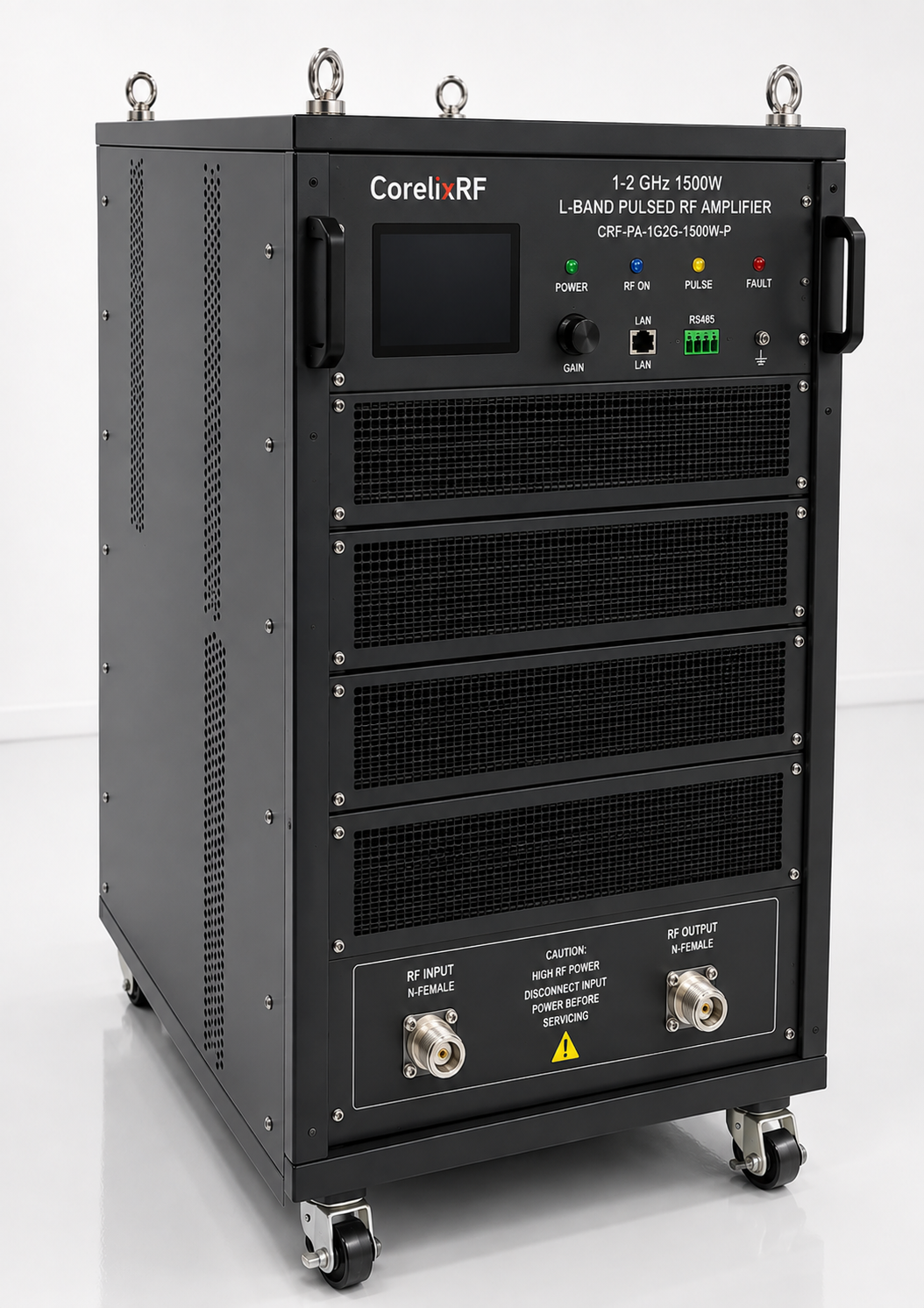

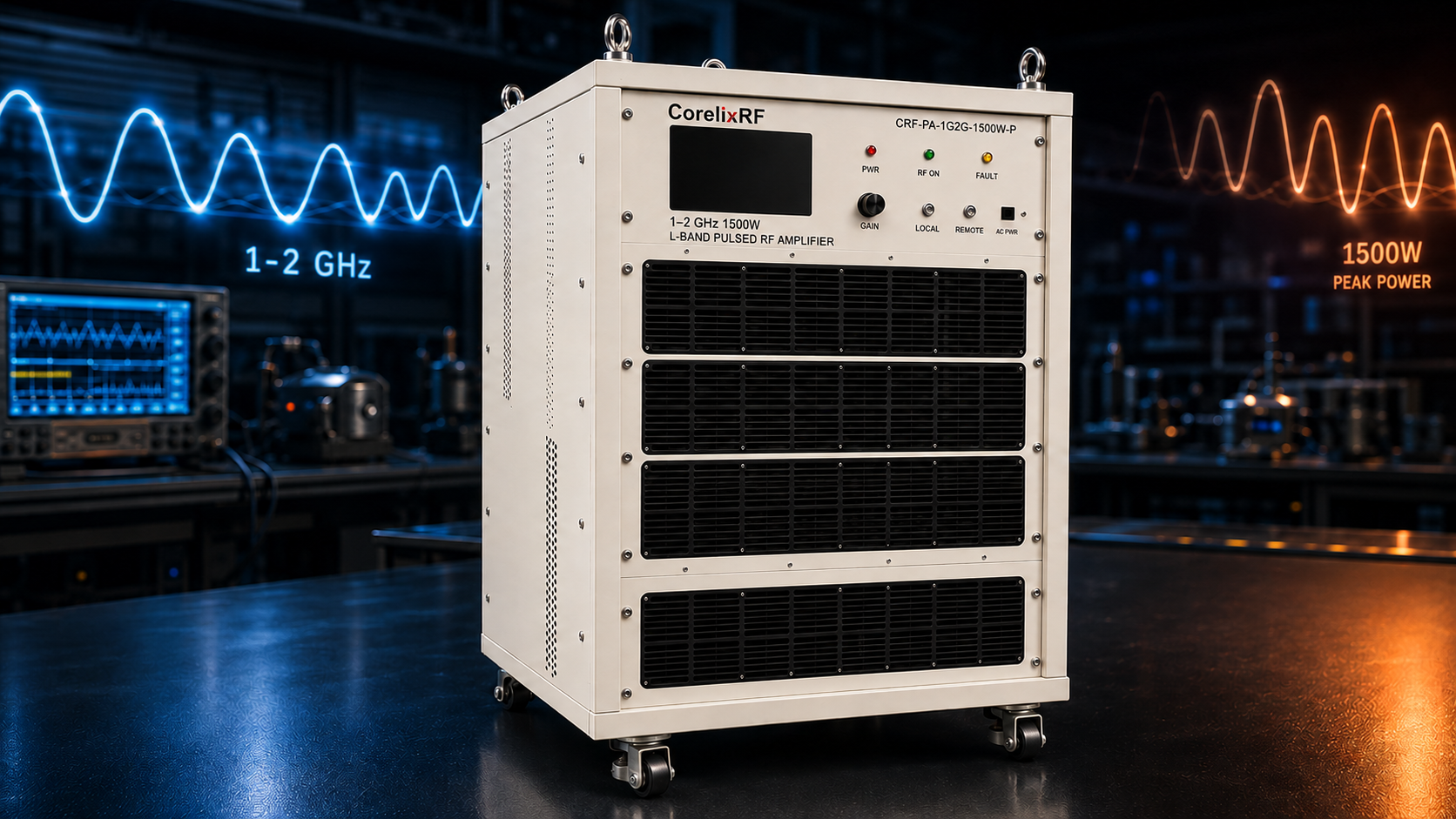

A 1-2 GHz 1500W L-band pulsed RF amplifier is a high-peak-power option for RF validation work where pulse timing and average thermal load must be defined before model selection. CorelixRF CRF-PA-1000M2000M-1500W is specified for 1,000-2,000 MHz operation, 1500 W rated output power, 1-50 us typical pulse width, 5% duty cycle, 62 dB minimum gain, N-Female RF input/output, RS485 / LAN control, and 5U rack-mount construction.
This article helps buyers review the model using datasheet facts and a conservative engineering workflow.
Why Pulse Conditions Define the Amplifier Choice
The 1-2 GHz range is often treated as L-band or extended UHF work depending on the system. The amplifier should be selected only after the pulse condition, load path, and measurement plan are clear. A peak-power target without pulse width and duty cycle is not a complete specification.
CorelixRF’s public pulsed amplifier platform page lists this model class as a high-power L-band starting point and recommends custom review when pulse, interface, monitoring, or mechanical conditions change.
How Engineers Should Review This Pulsed RF Amplifier
Begin with the actual pulse profile. The datasheet condition is 1-50 us typical pulse width with 5% duty cycle. If the test plan requires another timing envelope, average heat and protection behavior must be recalculated before the platform is accepted.
The 62 dB gain and 5 dBm maximum input power make input drive control important. A staged bring-up with attenuators, measured source level, and known load quality reduces avoidable integration risk.
Confirm peak power, pulse width, and duty cycle together
Confirm whether the project needs full 1,000-2,000 MHz coverage or a narrower L-band window. If only a smaller band is required, state the exact frequencies so CorelixRF can review the best match.
Review the RF interface and load path early
N-Female input and output are practical at this power class, but the output path should include properly rated couplers, switches, cables, and loads. Reflected power should be part of the test plan.
Treat cooling and facility requirements as RF requirements
The 5U rack and air-cooling requirement should be included in system planning. AC power, airflow direction, inlet temperature, rack clearance, and maintenance access all affect long-run performance.

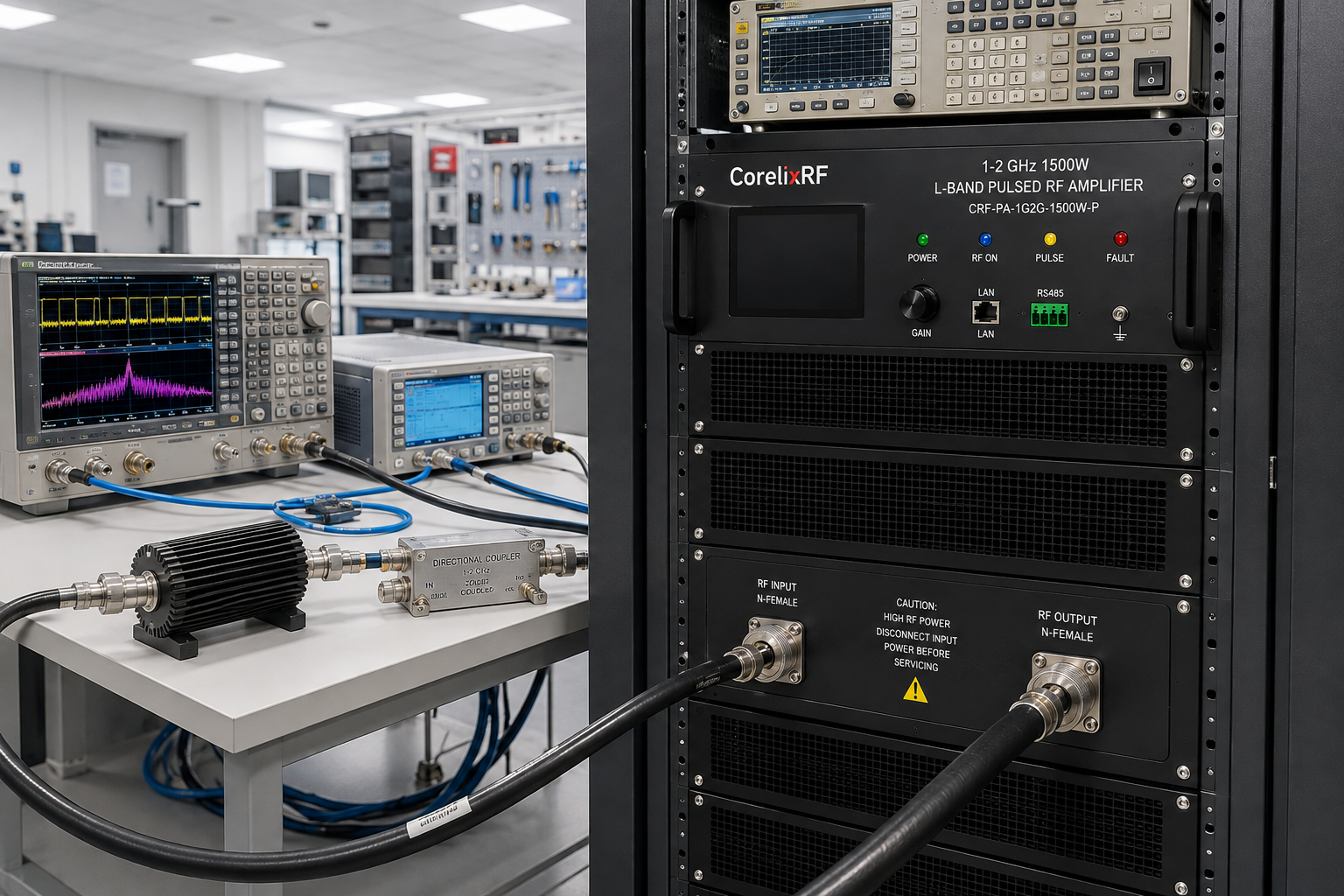

Integration Notes for Test, Radar Simulation, and RF System Validation
This amplifier can support pulsed RF test benches, communication system validation, and controlled lab environments where peak output and pulse timing are part of the acceptance procedure.
For a larger source-to-load system, pair the amplifier review with CorelixRF’s RF amplifier and SDR source platform discussion so source drive, waveform, load, and monitoring are evaluated together.
Control, monitoring, and protection planning
RS485 / LAN control should be mapped into the operator interface and fault handling plan. Optional GPIB may matter for legacy automated test equipment.
RFQ details to prepare before requesting a recommendation
Before asking for a quote, provide frequency range, target peak output power, pulse width, duty cycle, pulse repetition behavior, input drive level, connector preference, load VSWR, cooling method, control interface, monitoring requirements, mechanical envelope, and required acceptance documents. CorelixRF’s RF amplifier RFQ checklist is the practical place to turn these points into a review package.
Where This Model Fits in CorelixRF’s Pulsed Platform Path
This model is a direct fit for CorelixRF’s listed high-power pulsed RF amplifier path and a useful comparison point for narrower 1.2-1.4 GHz pulse platforms.
Use CorelixRF Contact to request model-specific review and avoid assuming stock, lead time, or final test data from a web summary.
FAQ
Is CRF-PA-1000M2000M-1500W a pulsed RF power amplifier?
Yes. The local datasheet identifies it as a solid-state pulsed RF power amplifier and lists model-specific pulse width and duty cycle conditions.
Can the pulse width or duty cycle be changed?
Pulse conditions are project-sensitive. The datasheet values should be treated as the supplied configuration baseline; any different pulse width, duty cycle, timing behavior, or thermal margin should be reviewed with CorelixRF before quotation.
What information matters most for a pulsed amplifier RFQ?
Frequency, peak output power, pulse width, duty cycle, pulse repetition behavior, source drive level, load VSWR, cooling method, control interface, and acceptance test points matter more than a single wattage number.
Does this article claim stock, certification, or customer results?
No. It only uses the local CorelixRF datasheet and public CorelixRF platform direction. Stock, lead time, compliance documentation, and project test data must be confirmed directly by CorelixRF.
Where should buyers send requirements?
Use the CorelixRF Contact page and include frequency, pulse condition, power, cooling, interface, mechanical, and documentation requirements.
