How to Implement Hardware VSWR Protection in Reconnaissance Gear?

Tactical antenna shearing creates massive impedance mismatches instantly. Software polling latency destroys final stage transistors before warning indicators flash. We stop catastrophic thermal runaway utilizing hardware-level interrupt loops. Twenty years analyzing ruined radio frequency stages provides hard engineering truth. Proper system integration demands rigorous physical protections.

1. What Causes High-Power Reconnaissance Equipment Failure?

● Sudden Mechanical Failures

● Impedance Mismatch Physics

● The Failure of Standard Polling

Reconnaissance gear operates across brutal environments constantly. Vehicles smash through dense forest canopies heavily. Branches shear off external whip antennas abruptly. Here is the deal. Losing that radiator creates an infinite standing wave ratio instantly. Forward energy bounces straight back into your amplifier board. Your final stage LDMOS transistor absorbs fifty watts of raw reflected power. Junction temperatures spike past safe operating limits within microseconds. Standard protection mechanisms react too slowly during such violent mechanical breakages. Most commercial off-the-shelf boards rely on sluggish digital polling architectures. Microcontrollers read analog voltage levels from directional couplers periodically. That polling interval usually hovers around fifty milliseconds. Silicon melts much faster than typical code loops execute. Field technicians find burnt out devices constantly because designers ignore actual physical realities. Real battlefield electronics demand nanosecond analog reaction times. We see entire tactical communication networks drop offline due solely to poorly implemented mismatch safeguards. Engineers must treat broken antennas as inevitable tactical realities.

Common Failure Modes | Description | Severity

Antenna Shearing | Complete loss of load matching | Catastrophic

Cable Crushing | Coaxial dielectric deformation alters impedance | High

Connector Loosening | Heavy vibration backs out SMA nuts | Medium

Moisture Ingress | Water alters resonant frequency characteristics | High

2. How Does Software Polling Latency Destroy Power Amplifiers?

● Concurrency in MCU Processing

● ADC Conversion Delays

● Thermal Runaway Physics

Software architectures inherently introduce dangerous timing gaps. Main processing loops handle multiple system tasks concurrently. Controllers manage displays, keyboard inputs, and network routing alongside hardware monitoring. What is the real story? Your analog-to-digital converter takes finite clock cycles gathering forward and reverse power metrics. Software must calculate current reflection coefficients mathematically afterward. Evaluating threshold conditions consumes further instruction cycles. Sending a disable command down an SPI bus adds more microsecond delays. Meanwhile, standing waves create massive voltage peaks at transistor drain terminals. Drain-to-source voltage ratings exceed breakdown limits almost immediately. Avalanche breakdown triggers massive destructive current flows straight through your semiconductor lattice. Metal layers vaporize before that shutdown routine ever finishes compiling its logic branch. Software simply cannot beat physics when dealing with raw radio frequency energy. Hardware designers must stop trusting firmware developers for critical transistor protection. Real survivability requires dedicated analog fault detection paths bypassing digital brains entirely. Physics dictates failure timelines mercilessly.

3. Why Is Hardware-Level VSWR Protection Superior?

● High-Speed Comparator Logic

● Bypassing the Digital Brain

● Decentralized Survivability

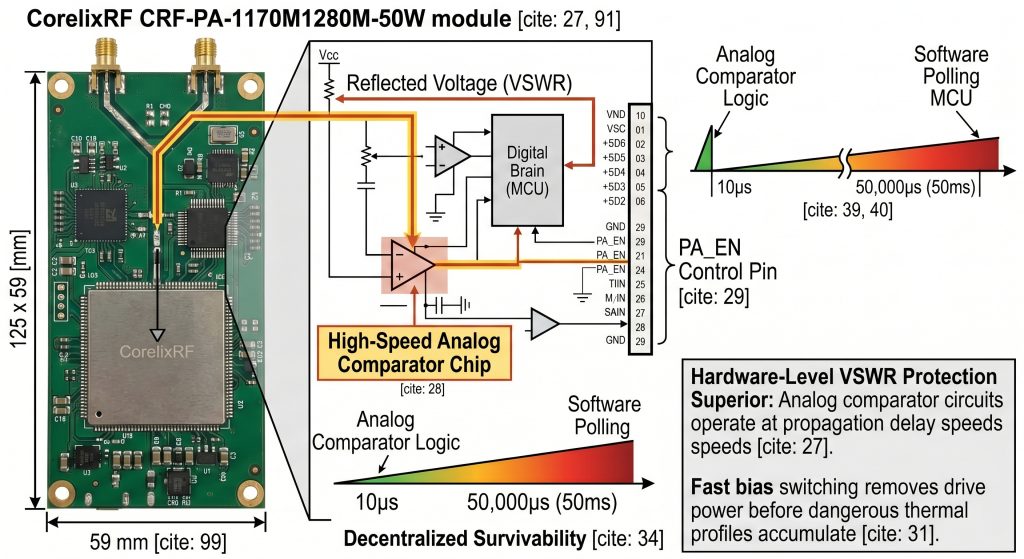

Analog comparator circuits operate at propagation delay speeds. We route reflected voltage signals directly into high-speed comparators. Crossing a predetermined threshold triggers an immediate logic state change. You might be wondering. This physical tripwire hardwires straight into the PA_EN control pin. Disabling bias current happens without any software intervention whatsoever. The CRF-PA-1170M1280M-50W module handles enable/disable functions under one hundred microseconds natively. Fast bias switching removes drive power before dangerous thermal profiles accumulate. System processors only learn about this fault after hardware already saved itself. Software then logs that event rather than attempting rescue operations late. Such decentralized protection architectures guarantee survivability regardless of CPU load conditions. Operating systems crashing or hanging will never leave your transmitter stages vulnerable. We build industrial-grade resilience treating microprocessors strictly as secondary observers during catastrophic impedance shifts. Pure electronics always react faster than compiled code loops. Hardwired safety overrides prevent expensive smoke events.

Protection Architecture | Typical Latency | Survival Rate

Software Polling MCU | 50 milliseconds | Poor

Interrupt Driven MCU | 5 milliseconds | Marginal

Analog Comparator Logic | 10 microseconds | Excellent

Dedicated VSWR Chip | 2 microseconds | Superior

4. What Are The Core Architecture Design Traps?

● The Weight of Ferrite Isolators

● Thermal Derating Traps

● Directional Coupler Errors

Many engineers mistakenly rely entirely on ferrite isolators. Circulators certainly redirect reflected energy into dummy loads safely. This is where it gets interesting. High-power isolators add substantial weight and volume inside compact reconnaissance payloads. They introduce insertion loss eating away precious transmit range continuously. Squeezing fifty watts through a tiny circulator generates massive localized heat loads. Designers often forget thermal derating curves applying to those magnetic components. Another trap involves selecting cheap surface mount directional couplers. Poor directivity renders reverse power readings completely inaccurate across broad spectrums. Erroneous voltage levels either trigger false alarms or miss catastrophic faults entirely. You must specify components maintaining tight coupling tolerance from 1170 MHz 1280MHz. Blindly trusting reference designs without analyzing boundary conditions ruins expensive prototypes. We constantly review schematics lacking adequate high-frequency bypassing near driver stages. Oscillations destroy transistors just as quickly as mismatched loads do. Professional engineering rejects lazy textbook assumptions.

5. How Does Antenna Breakage Impact System Link Budgets?

● Standing Wave Ratio Mathematics

● Return Loss Disasters

● Autonomous Retry Dangers

Snapping a radiator drastically alters your entire communication envelope. An ideal match pushes maximum energy toward distant receivers. Breakage drops return loss figures near zero decibels instantly. Think about it. Almost all forward power rebounds backward creating severe standing waves. That transmitter suddenly radiates a tiny fraction of intended output. Your calculated path loss margin vanishes completely. Receivers drop lock as signal-to-noise ratios plummet below demodulation thresholds. Intelligent systems might attempt increasing transmit gain compensating for dropping link quality. Pushing more drive into a broken port only accelerates transistor destruction. System integrators must implement rapid fault signaling alerting network operators immediately. Sending diagnostic flags upstream prevents autonomous routines from demanding impossible output levels. Broken hardware requires immediate physical repair rather than software retries. Recognizing catastrophic physical damage quickly saves remaining battery reserves during extended field deployments. True engineering involves acknowledging absolute physical boundaries. Hardware limitations dictate tactical software responses.

System VSWR | Return Loss (dB) | Reflected Power (%)

1.5:1 | 14.0 | 4.0

2.0:1 | 9.5 | 11.1

3.0:1 | 6.0 | 25.0

Infinite | 0.0 | 100.0

6. Why Do Traditional BOM Selections Fail Under High Vibration?

● Mechanical Vibration Profiles

● Solder Joint Fatigue

● Ruggedized Connector Solutions

Reconnaissance platforms vibrate violently across rough terrain profiles. Commercial grade components simply shake apart under sustained mechanical stress. Solder joints on heavy inductors fatigue quickly without proper adhesive anchoring. Look at the facts. Standard FR4 circuit boards flex enough cracking delicate ceramic capacitors. We see poor quality SMA connectors loosen causing intermittent impedance spikes. The CRF-PA-1170M1280M-50W utilizes ruggedized SMA-KFD46 output connectors specifically avoiding this issue. Flange mounted connectors bolt directly onto solid aluminum housings preventing stress transfers. Internal layouts must secure heavy planar transformers using specialized potting compounds. Relying purely on surface tension during reflow soldering guarantees field failures eventually. We rigorously analyze resonant frequencies for every mechanical assembly. Dampening specific vibrational modes stops harmonic destruction tearing components off traces. Selecting military grade fasteners with thread locking compounds separates professional gear from amateur toys. Mechanical integrity dictates electrical reliability entirely. Broken joints emit zero radio frequency power.

7. How Can We Optimize Thermal Dissipation For 50W Output?

● Radio Frequency Inefficiencies

● Over-Temperature Shutdown Metrics

● Baseplate Mounting Strategies

Pushing fifty watts requires handling substantial waste heat properly. Amplifiers rarely exceed fifty percent efficiency operating linearly. Generating fifty watts radio frequency output means managing another fifty watts thermal load. Let that sink in. Without proper external heat sinks junction temperatures rise incredibly fast. CorelixRF implements automatic over-temperature shutdown limits at eighty degrees Celsius. The system recovers automatically only after cooling below seventy degrees. Designers must calculate thermal resistance paths from transistor flanges right through chassis walls. Using high-grade thermal interface materials prevents hot spots forming under power devices. We mandate specific torque values mounting our 125 by 59 millimeter modules. Inadequate mounting pressure leaves microscopic air gaps destroying thermal conductivity. Reconnaissance equipment often lacks active cooling fans due acoustic stealth requirements. Relying purely on natural convection demands massive surface area optimization strategies. Thermal dynamics dictate absolute continuous power limits for any specific form factor. Thermodynamics never negotiate with project managers.

Interface Material | Thermal Conductivity (W/mK) | Application Suitability

Standard Silicone Grease | 1.0 | Poor

Ceramic Filled Paste | 4.5 | Acceptable

High Performance Pad | 8.0 | Good

Phase Change Material | 12.0 | Excellent

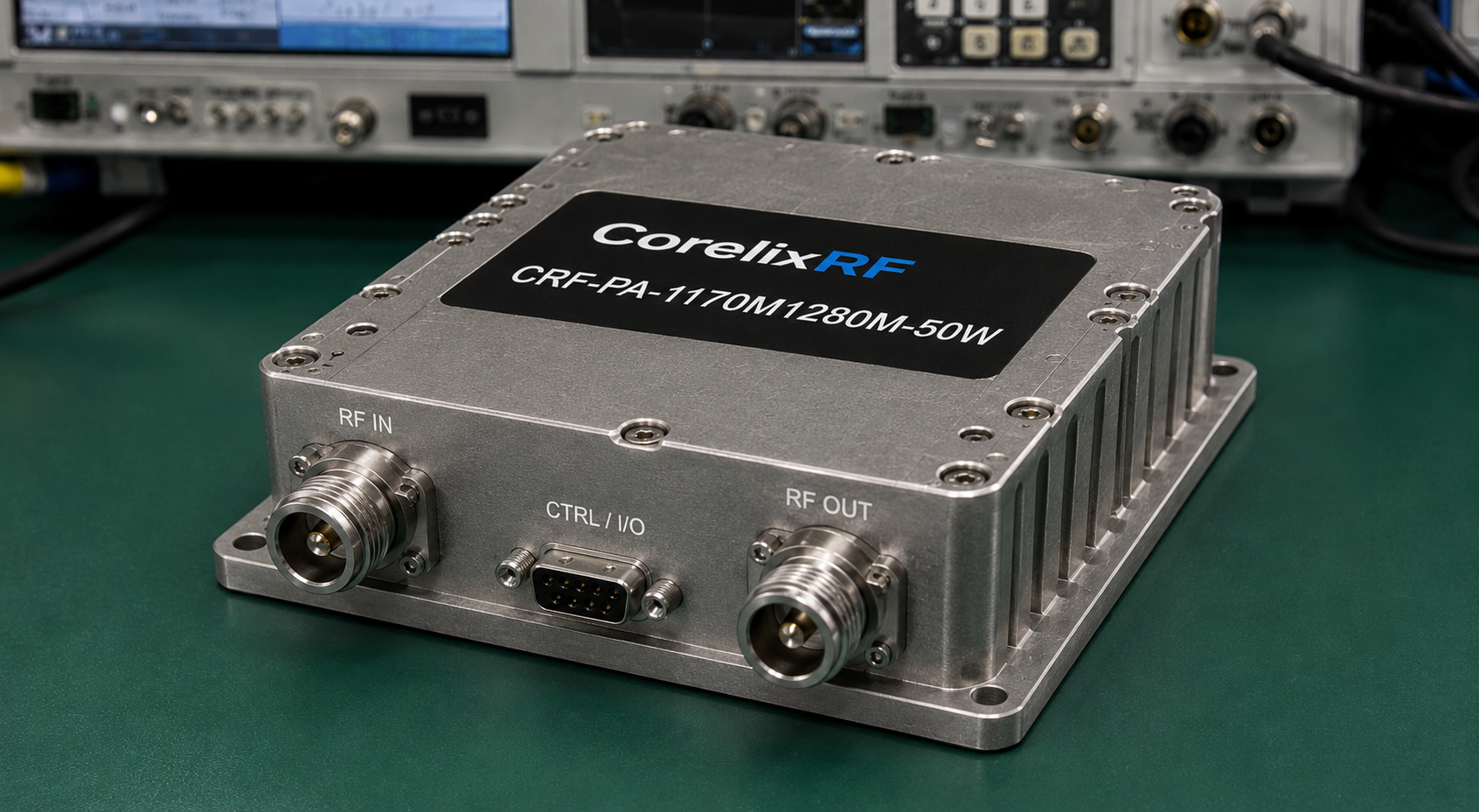

8. What Makes The CRF-PA-1170M1280M-50W Ideal For This?

● 50W Saturated Power Delivery

● D-Sub Interface Logic

● Indestructible Signal Chains

This specific module addresses harsh reconnaissance realities perfectly. It delivers steady fifty watt saturated power across critical bands. Gain holds tightly between forty-three and forty-seven decibels eliminating complex leveling loops. Ready for the good part? An internal VCO frequency source allows precision ten hertz stepping capabilities. Control logic interfaces operate via rugged D-Sub nine pin female connectors. We designed power supply requirements accepting twenty-four through thirty-two volt ranges seamlessly. Nominal twenty-eight volt operation aligns perfectly with standard military vehicle bus architectures. High-speed PA_EN pins accept simple zero or floating states for active transmission. Applying standard logic high completely disables bias circuitry rapidly. A compact half-kilogram footprint fits easily inside crowded tactical enclosures. CorelixRF engineering teams prioritized survival features over theoretical peak efficiencies during development. Real-world operations demand hardware surviving abuse rather than just printing nice laboratory datasheets. Engineering truth means building indestructible signal chains. Battlefield reliability outperforms laboratory metrics easily.

9. How Does The 1170-1280 MHz Band Perform In Real-World Reconnaissance?

● Urban Propagation Characteristics

● Frequency Agility Tactics

● Spurious Emission Control

Operating around twelve hundred megahertz provides excellent propagation characteristics. These frequencies penetrate urban structures much better than higher microwave bands do. Foliage attenuation remains manageable during deep forest deployments. The truth is simple. This spectrum balances bandwidth requirements against atmospheric absorption penalties perfectly. Wide adjustment ranges from nine-twenty through thirteen-hundred megahertz offer massive frequency agility. Systems hop across different channels evading targeted communication interference attacks easily. Maintaining tight input VSWR below one-point-five maintains stable loading for upstream exciter stages. Clean signal generation prevents unwanted spurious emissions giving away tactical positions. High gain characteristics mean minimal drive power requirement from main processing boards. Reconnaissance architectures leverage this band passing high resolution video streams reliably. Atmospheric ducting occasionally extends operational ranges far beyond strict line-of-sight calculations. We optimize matching networks specifically targeting maximum flatness across this entire designated window. RF physics determines ultimate tactical reach.

Parameter | Specification | Real-World Benefit

Frequency Range | 1170-1280 MHz | Excellent urban penetration

Output Power | 50 Watts | Pushes through heavy jamming

Current Draw | 5-6 Amps | Manages battery load effectively

Frequency Stepping | 10 Hz | Precise target locking

10. What Are The Exact Integration Steps For This Module?

● Thermal Surface Preparation

● Coaxial Torque Specifications

● Power Sequencing Rules

System integrators must follow strict mechanical and electrical sequencing procedures. Mount the aluminum baseplate directly onto a prepared thermal transfer surface first. Secure all chassis bolts utilizing prescribed torque specifications guaranteeing flat contact. But wait, there is more. Connect fifty-ohm coaxial lines starting with RF input ports cautiously. Attach output cables heading toward antenna switching matrices using calibrated torque wrenches. Supply wiring requires heavy gauge conductors handling six continuous amps safely. Ground returns must tie directly back toward central star distribution points. Never share heavy current return paths alongside sensitive analog sensor lines. Control signals route through D-Sub interface pins eight and nine reliably. Verify software routines initialize driving logic high keeping amplifiers disabled during bootup. Apply twenty-eight volts only after confirming stable exciter outputs. Methodical assembly prevents accidental hot-switching damage ruining expensive hardware before deployment. Strict adherence separates professional assembly from amateur electronics hacking. Rigorous procedures prevent costly factory returns.

Software polling latency destroys power amplifiers during sudden antenna breakages. Hardware-level analog protection remains absolutely mandatory for reliable reconnaissance equipment. The CRF-PA-1170M1280M-50W module delivers resilient 50W performance handling extreme mismatch events perfectly. Contact CorelixRF engineering teams directly regarding customized integration reviews for your next tactical communication platform.

FAQ Section

Q1: What is the primary cause of reconnaissance equipment PA burnout?

Sudden antenna breakages cause massive impedance mismatches. Software polling latency prevents the system from shutting down the amplifier quickly enough, resulting in destructive thermal runaway.

Q2: How does hardware VSWR protection differ from software polling?

Hardware protection uses analog comparator circuits triggering the PA_EN pin directly within microseconds. Software relies on slower digital loops taking milliseconds.

Q3: Why are ferrite isolators not always the best solution?

High-power isolators add substantial weight, volume, and insertion loss. They also generate massive localized heat loads poorly suited for compact tactical enclosures.

Q4: What are the key thermal management requirements for a 50W amplifier?

Integrators must provide adequate external heat sinks and utilize high-grade thermal interface materials. Proper mounting torque guarantees efficient heat transfer preventing automatic thermal shutdown above 80°C.

Q5: How does the CRF-PA-1170M1280M-50W handle enable/disable switching?

The module utilizes a dedicated PA_EN control pin on the D-Sub connector. A 0V or floating state enables the amplifier, while applying 3.3V or 5V disables transmission within 100 microseconds.
