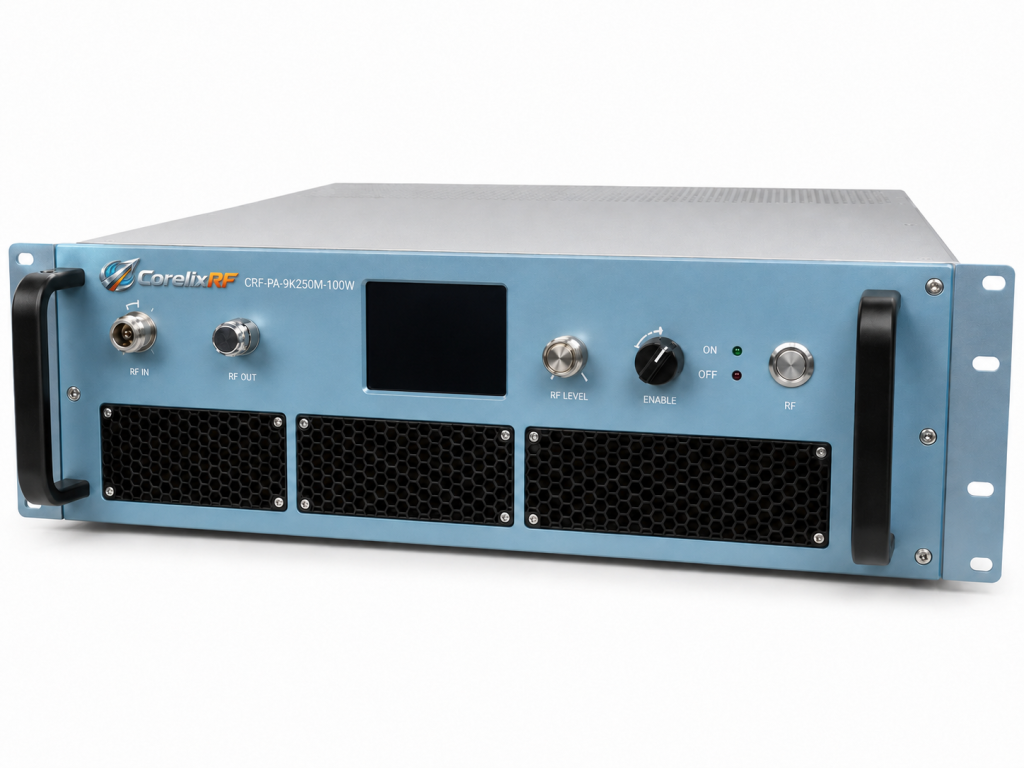

The CorelixRF CRF-PA-9K250M-100W is specified for 9 kHz-250 MHz operation, 100 W rated RF output power, N-Female input and output connectors, and a 19-inch 3U rack-mount form factor. This article is not a checklist or product update. It is a buyer-facing RFQ template that procurement and engineering teams can adapt when requesting a low-frequency EMC RF amplifier review.
Subject Line

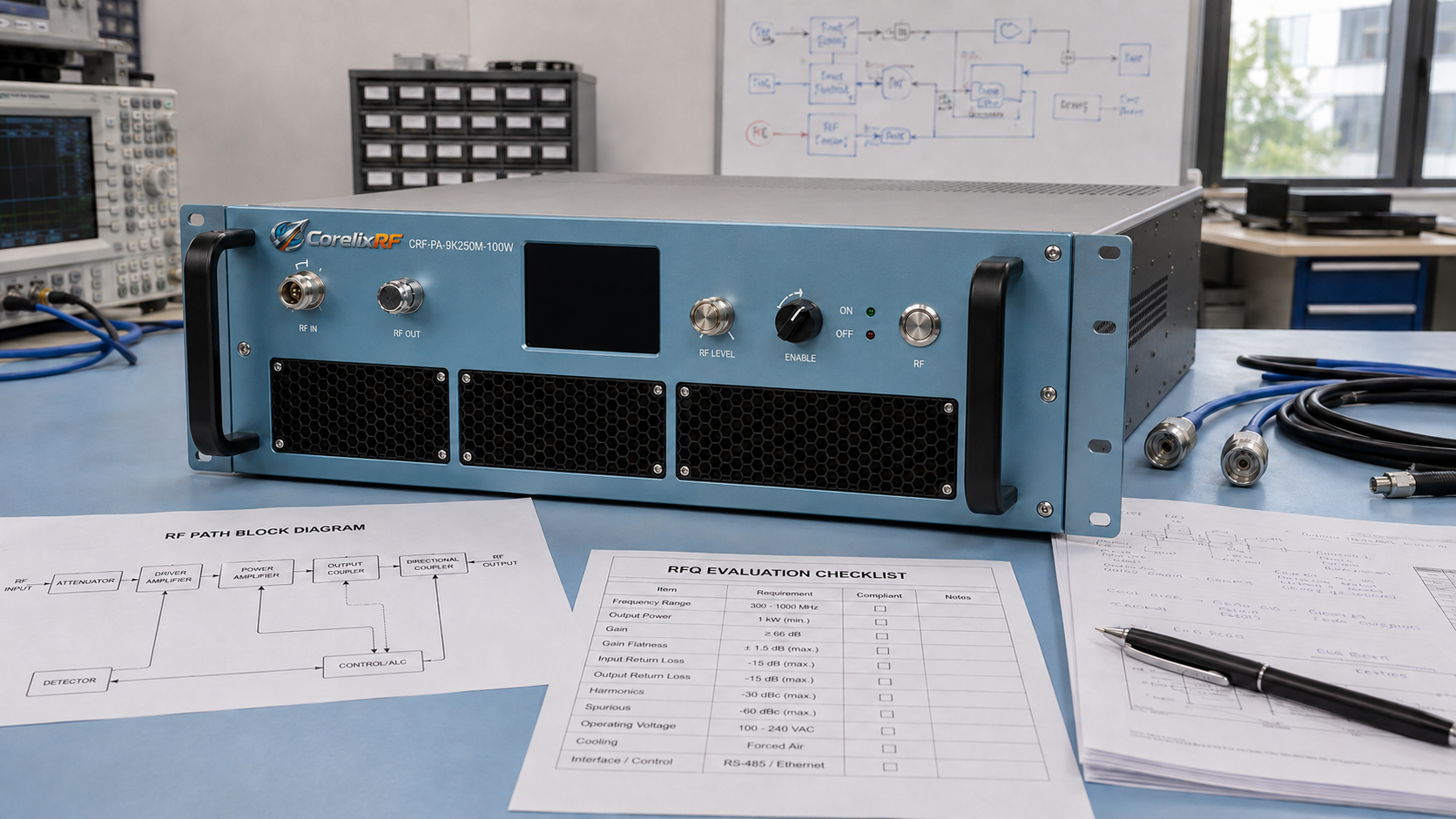

RFQ Request: 9 kHz-250 MHz 100W LDMOS RF Amplifier for EMC Test Path
Email Opening
Hello CorelixRF team,
We are reviewing a 9 kHz-250 MHz, 100 W LDMOS RF power amplifier for a low-frequency EMC or RF test path. Please review whether CRF-PA-9K250M-100W is suitable for the operating conditions below, and advise if another standard or custom configuration would be more appropriate.
Technical Requirements to Include
- Operating frequency range: state exact bands inside 9 kHz-250 MHz.
- Required output power: define power at the load, not only amplifier output.
- Waveform: CW, swept, modulated, stepped, or duty-cycled.
- Duty profile: dwell time, repeat schedule, and expected run duration.
- Source drive: signal generator output level and any driver stage.
- Load condition: fixture, coupling network, antenna, termination, or project-specific device.

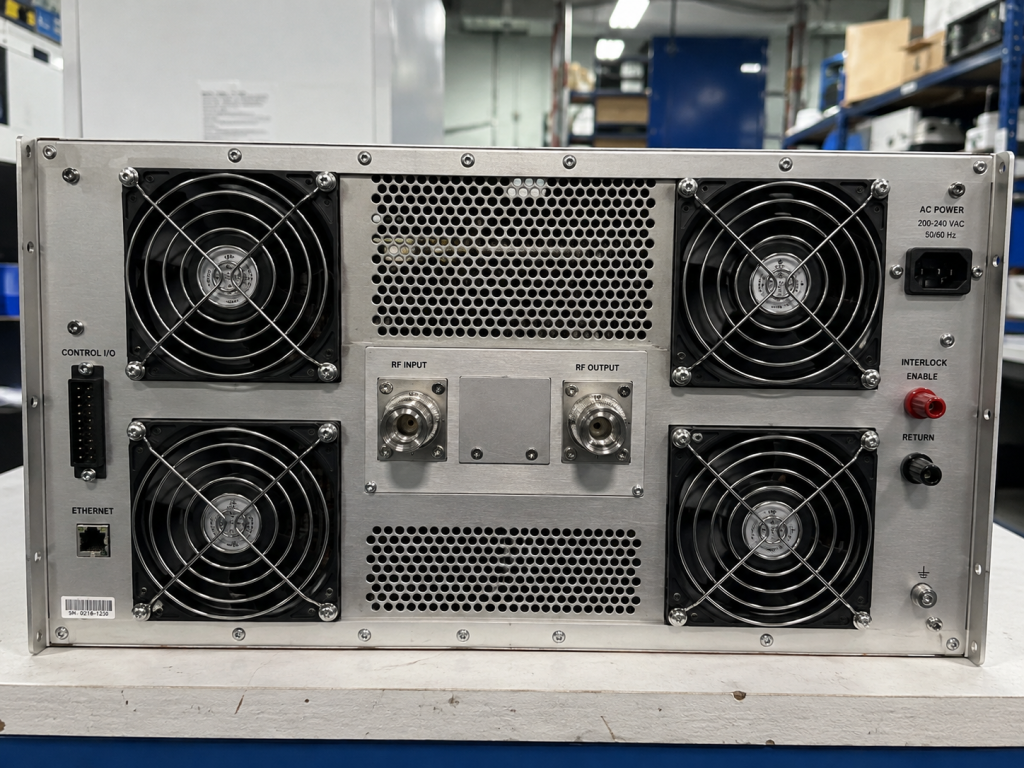

- Rack requirement: 19-inch 3U fit, airflow, power environment, and connector access.
System Context Paragraph

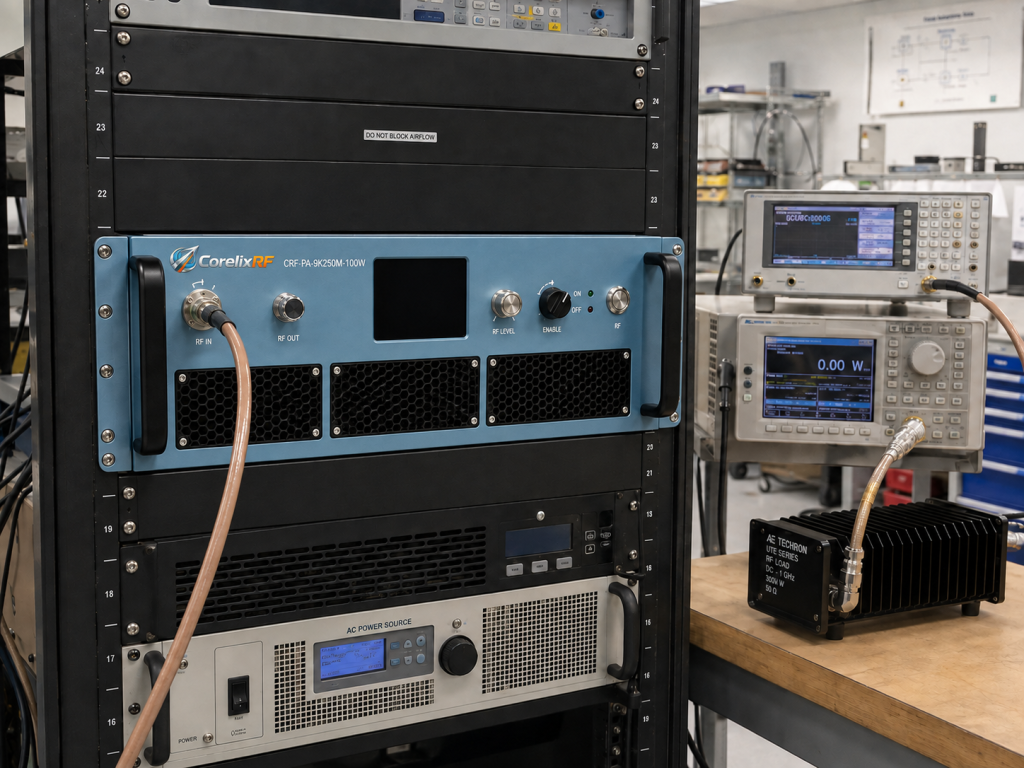

The amplifier will be used in a test path that includes [source], [attenuator or driver], [coupler], [fixture or antenna], and [load or device under test]. Expected cable and fixture losses are [values]. The system will be controlled by [manual operation or software], and alarm or enable behavior should support [required interlock or operator procedure].
Questions for CorelixRF
- Is CRF-PA-9K250M-100W the right power class for this path?
- Should we consider a higher- or lower-power model for better margin?
- Are N-Female input and output connectors appropriate for this setup?
- What cooling, rack spacing, and control details should we reserve?
- What final mechanical drawing, test data, and control information can be supplied for project review?
Commercial Review Notes
Procurement should separate mandatory requirements from preferences. Mandatory items may include the 9 kHz-250 MHz range, 100 W output class, connector type, rack form factor, and control behavior required by the test system. Preferences may include panel layout, documentation format, and delivery packaging.
If the project is already fixed around this model, ask CorelixRF for confirmation against the stated path. If the project is still open, ask for a comparison against adjacent products in the CorelixRF product range, the broadband RF power amplifier category, or a project-specific custom RF amplifier.
Copy-Ready Closing
Please confirm technical fit, recommended configuration, expected documentation, and any risk items we should resolve before ordering. If the standard CRF-PA-9K250M-100W is not the best fit, please recommend the closest CorelixRF alternative and explain the reason.
This email-template format is useful because it gives both buyer and engineer a common starting point. It also improves SEO for searchers who are not just reading about an amplifier, but actively preparing a quotation request.
For background reading before sending the RFQ, review CorelixRF’s RF application articles. Those resources can help a buyer describe duty cycle, power budget, and integration constraints more clearly.
Optional Paragraph for Replacement Projects
If this RFQ is replacing an existing amplifier, include the legacy amplifier model, rack photos, connector orientation, known failure mode, and any cable or fixture that must be reused. CorelixRF can then judge whether the request is a direct replacement, a power-class change, or a redesign opportunity.
Optional Paragraph for New Test Systems
If this RFQ supports a new test system, include the planned source, software control method, expected acceptance test, and future frequency expansion. New systems have more flexibility, so the best recommendation may not be the exact model named in the first request. Asking for an engineering recommendation can prevent buying a technically workable but suboptimal amplifier.
Buyer Checklist Before Sending
- Attach the RF path diagram if available.
- State delivered-power requirement and measurement method.
- Separate mandatory requirements from preferences.
- Ask whether the standard model or a modified configuration is recommended.
Attachment List
- Signal-path drawing or block diagram.
- Frequency and power table.
- Duty-cycle and waveform notes.
- Rack-space and airflow information.
- Photos of any existing system if this is a replacement.
- Acceptance-test expectations.
These attachments reduce ambiguity. They help the CorelixRF team decide whether the request is a straightforward quote, a standard-model fit check, or a broader engineering recommendation. They also help the buyer keep a record of why a specific amplifier class was selected.
Internal Approval Note
Before sending the RFQ, the buyer should circulate the draft request to the engineer responsible for the test path. That engineer should confirm the frequency range, delivered-power target, load condition, and duty cycle. This prevents purchasing from sending a quote request that is complete commercially but incomplete technically.
The buyer should also ask whether price comparison requires identical assumptions across vendors or models. If one quote includes control review, documentation, or integration notes while another includes only hardware, the comparison is not equivalent.
Keep the final RFQ version-controlled so engineering changes are visible before supplier review.
FAQ
What frequency range does CRF-PA-9K250M-100W cover?
The datasheet lists 9 kHz-250 MHz operation.
What output power is specified?
The rated RF output power is 100 W.
What connectors are listed?
The datasheet lists N-Female input and output connectors.
Why use an email template?
It helps procurement send complete technical context instead of only asking for price and delivery.
