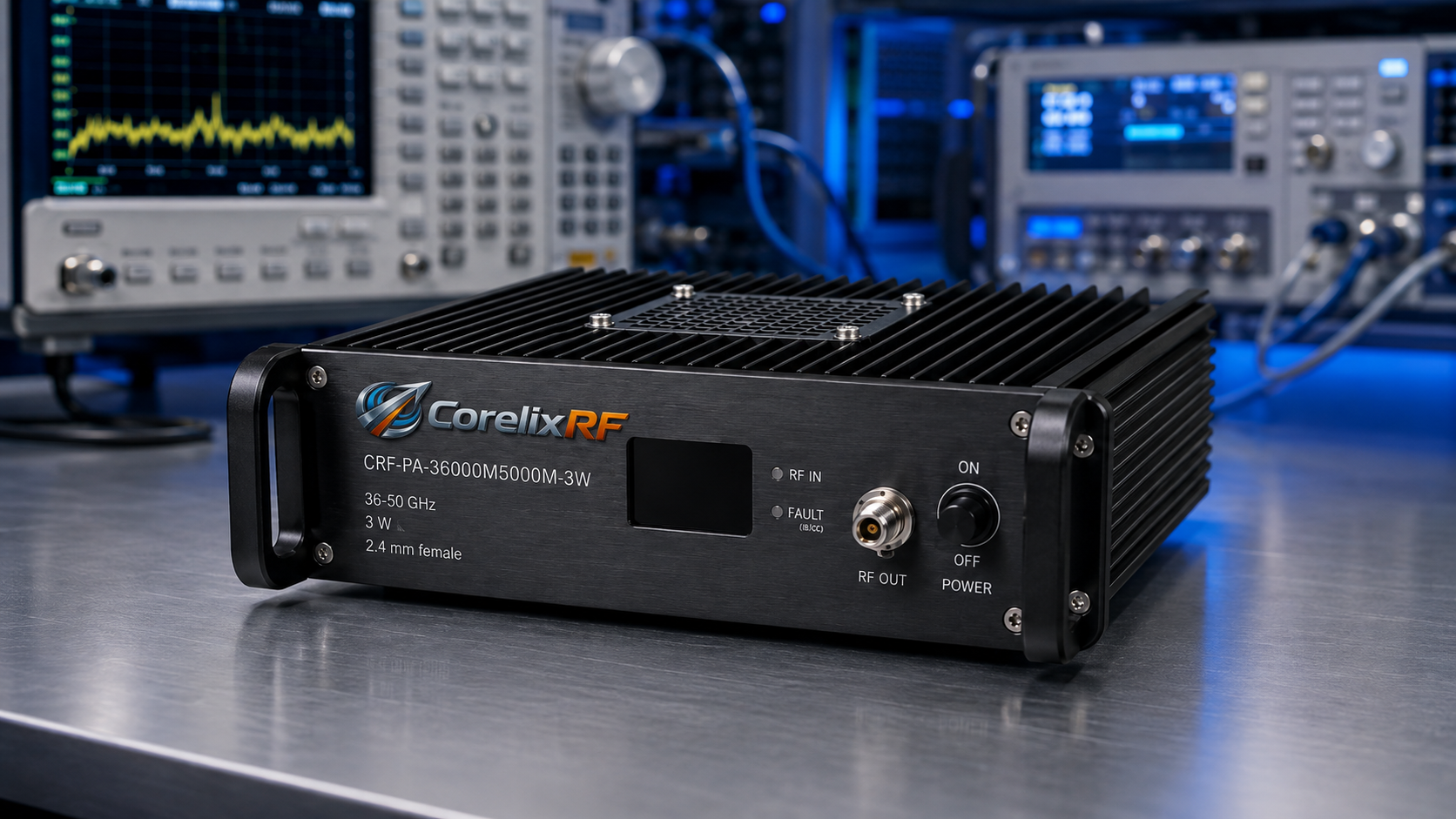

Engineers searching for a 36-50 GHz 3W compact mmWave RF amplifier usually have a specific problem: the source has enough frequency coverage but not enough usable RF power at the device, fixture, converter, or subsystem input. The CorelixRF CRF-PA-36000M50000M-3W addresses that problem with 36 GHz to 50 GHz coverage, 3 W rated output power, 37 dB minimum small-signal gain, 2.4 mm female RF input/output, RS485 control, and a compact forced-air configuration.
This selection guide treats the amplifier as a bridge between low-level mmWave signal generation and practical Q/V band validation. It is not positioned as a universal answer for every high-frequency setup. Instead, it helps teams decide whether a small-unit GaN SSPA belongs in the driver chain, component test bench, communication hardware review, or authorized RF system validation plan. For broader context, CorelixRF’s high frequency RF capability page and standard RF amplifier platform page are useful starting points.

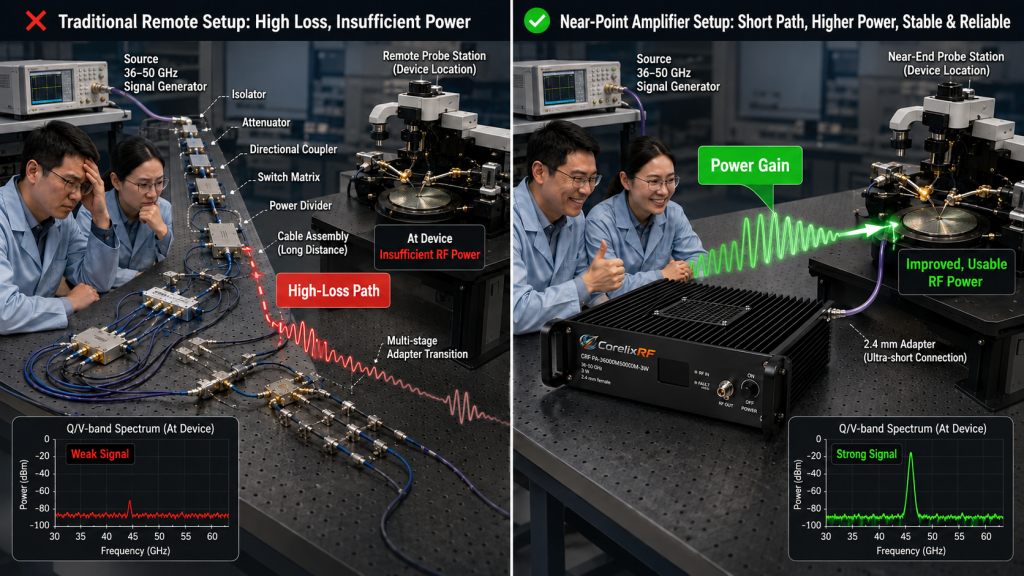

Problem 1: The source reaches 50 GHz, but the test point needs more power
A signal generator, synthesizer, or converter may cover the target frequency, yet arrive at the fixture with too little margin after cable loss, switch loss, connector transitions, and measurement accessories. A 3 W amplifier gives the system designer more usable level while staying well below high-power rack or cabinet classes. That can be the right compromise for lab benches where coverage, stability, and manageable integration matter more than maximum wattage.
Problem 2: The setup needs compact hardware instead of a large rack

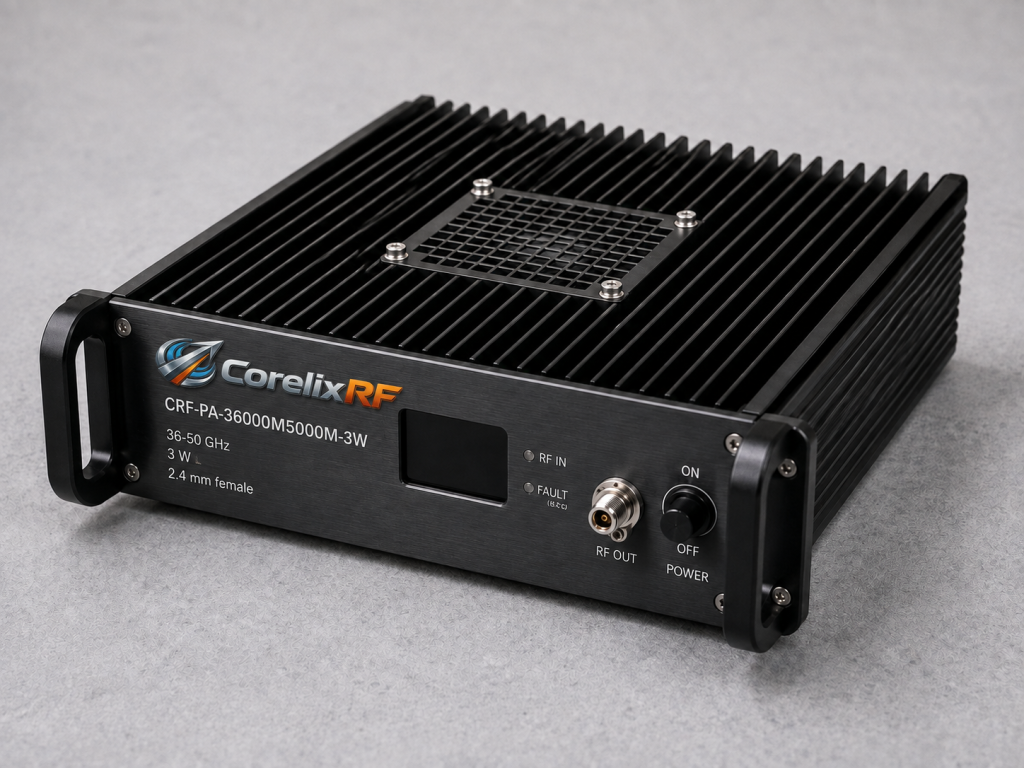

The CRF-PA-36000M50000M-3W is listed as a small unit with forced-air cooling. That makes it relevant when a team has limited bench space, wants a shorter RF path, or needs to mount the amplifier closer to the test fixture. Compact does not mean casual, though. At 36-50 GHz, connector care, torque practice, cable bend radius, and measurement calibration all affect the quality of the result.
Key specifications to confirm
- Frequency range: 36 GHz to 50 GHz
- Rated output power: 3 W
- Technology platform: GaN SSPA
- Small-signal gain: 37 dB minimum
- Gain flatness: -8 dB to +8 dB
- Gain control range: up to 15 dB
- RF connectors: 2.4 mm female input and output
- Control interface: RS485
- Power supply: AC 220 V +/-10%, 50/60 Hz
- Cooling: small-unit forced-air cooling
Solution fit: when this model is a strong candidate
This amplifier is a strong candidate when the RFQ prioritizes broad 36-50 GHz coverage, moderate output power, compact integration, and a defined control path. It may be less appropriate when the project requires very high radiated power, large waveguide output hardware, or extensive rack-level remote monitoring. In those cases, compare the requirement with CorelixRF’s 18-40 GHz amplifier category, 6-18 GHz microwave amplifier page, and higher-power mmWave options.
RFQ guidance
Provide the actual test frequencies, target output at the load, expected input drive, waveform type, duty cycle, connector plan, cooling environment, and required acceptance data. Include whether the amplifier drives a component, mixer, antenna path, chamber feed, or another amplifier stage. CorelixRF’s RF testing and validation workflow is relevant because gain, output power, thermal behavior, spurious response, and fault response should be verified under defined conditions.
FAQ
Is CRF-PA-36000M50000M-3W a compact mmWave amplifier?
Yes. The supplied specification describes a small-unit 36-50 GHz GaN SSPA with 3 W rated output power.
What connector type should engineers plan around?
The datasheet lists 2.4 mm female RF input and output, so connector care and calibrated cable selection should be part of the setup.
Does it include remote control?
The listed control interface is RS485. Protocol and monitoring expectations should be confirmed during project review.
What internal link should a reader use next?
Readers can move from this article to CorelixRF’s engineering and manufacturing page or Contact page for project review.
