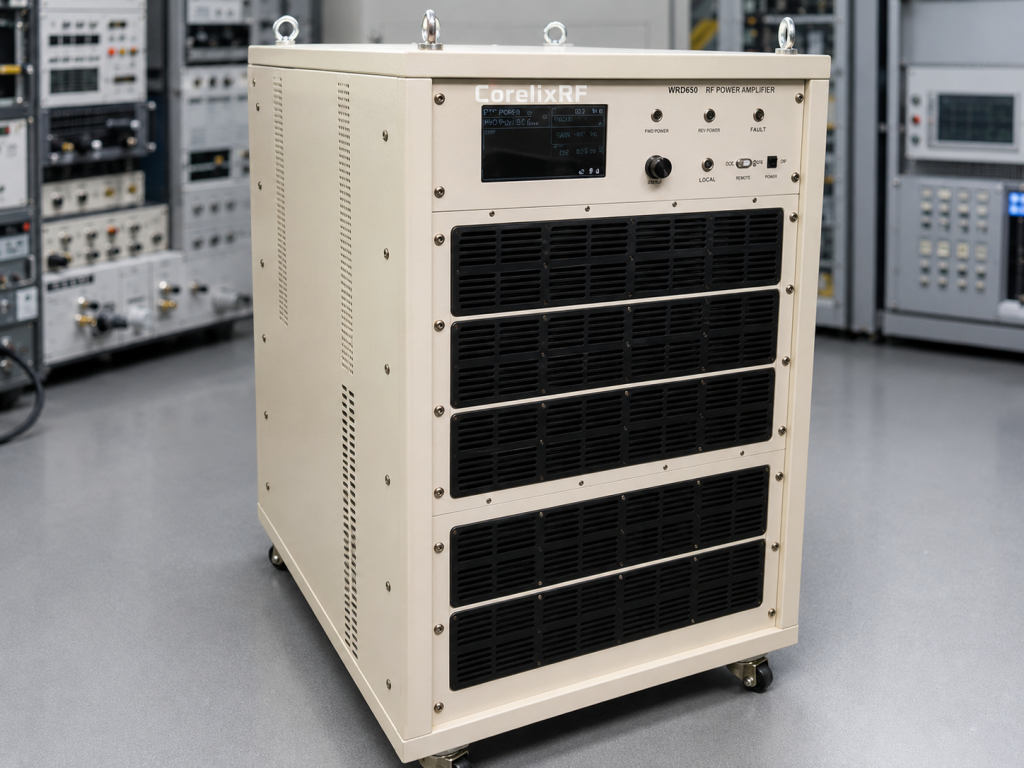

The CRF-PA-8000M18000M-1500W is a CorelixRF GaN solid-state RF power amplifier specified for 8-18 GHz operation with 1500 W rated output power. This article is written for engineers, RF lab managers, and procurement teams evaluating a specific amplifier model rather than browsing a generic product category. The goal is to turn the available specification data into a practical selection checklist for test benches, communication system evaluation, RF interference system-level testing, aerospace control system integration, and custom RF platform planning.
Why This 8-18 GHz 1500W RF amplifier Is Worth a Separate Review
A search for a 8-18 GHz 1500W RF amplifier usually indicates a real project constraint: the frequency band has already been narrowed, the expected output level is known, and the buyer now needs to compare mechanical format, RF interfaces, control options, and protection behavior. A RF power amplifier should not be selected from output power alone. The complete chain includes the signal source, driver level, attenuators, cables, couplers, switches, feedthroughs, load or antenna behavior, cooling path, and control interface.
For this model, the extracted CorelixRF specification identifies 8-18 GHz frequency coverage, 1500 W rated RF output power, 62 dB minimum small-signal gain, N-Female input and WRD650 waveguide output, RS485 / LAN control, AC 380 V +/-10%, 50/60 Hz, and air cooling. These are the specification points that should appear in a quotation request and in any internal engineering comparison.
Core Specification Snapshot
Frequency Range and Power Class
The CRF-PA-8000M18000M-1500W is specified for 8-18 GHz. The rated output power is 1500 W. This places it in the very high-power multi-octave microwave amplifier category. Before purchase, define whether the power requirement is needed directly at the amplifier output or after downstream components. A directional coupler, switch matrix, waveguide transition, long coaxial run, chamber feedthrough, or test antenna can change the usable power at the device under test.
Gain, Drive Level, and Output Control
The specification lists 62 dB minimum small-signal gain and -6 to +6 dB gain flatness. The maximum input power is listed as 0 dBm in the extracted data. That means source planning is critical. A signal generator or SDR exciter should be paired with the correct attenuation and control procedure so the amplifier is not overdriven during startup, sweep setup, or waveform changes.
The model also lists a 20 dB gain control range. That is useful when the same RF chain must support multiple output levels without repeatedly changing external pads or source settings. Ask whether gain control is available through the quoted control interface and how it is reported in the control protocol.

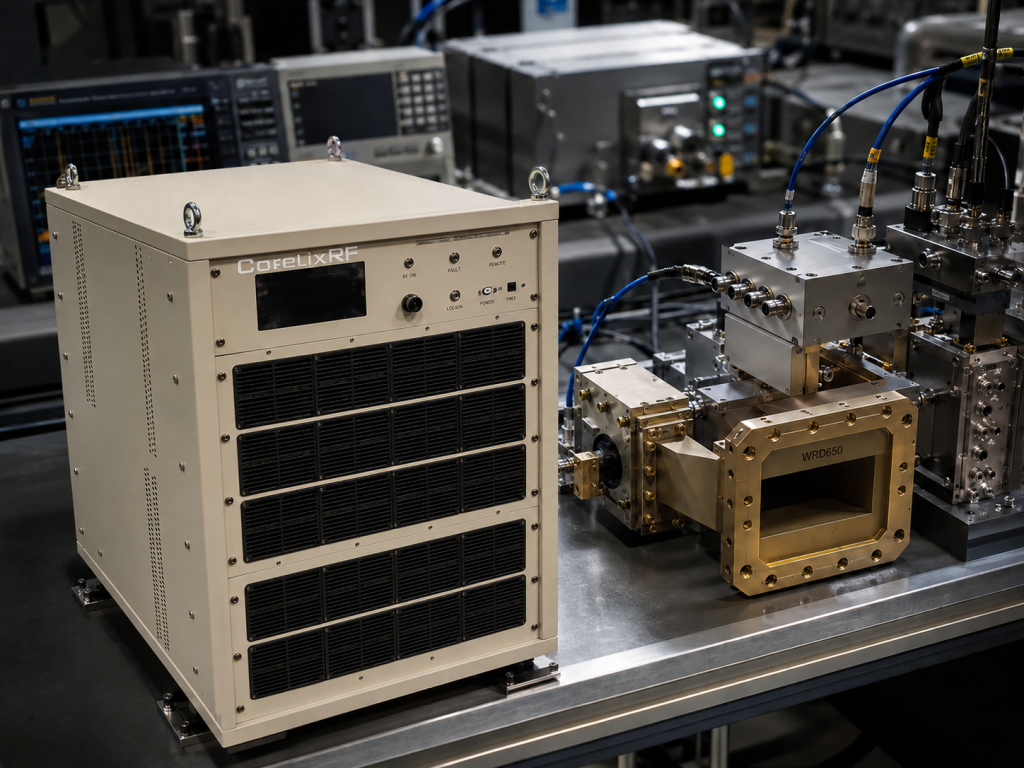

RF Connectors and Mechanical Fit
The listed RF interfaces are N-Female input and WRD650 waveguide output. The mechanical format is project-specific mechanical configuration marked TBD in the source data. Interface details can determine whether integration is straightforward or time-consuming. Coaxial configurations need attention to cable loss, connector rating, bend radius, and repeatable assembly. Waveguide-output configurations need flange review, output orientation, coupler placement, load rating, and fixture alignment.

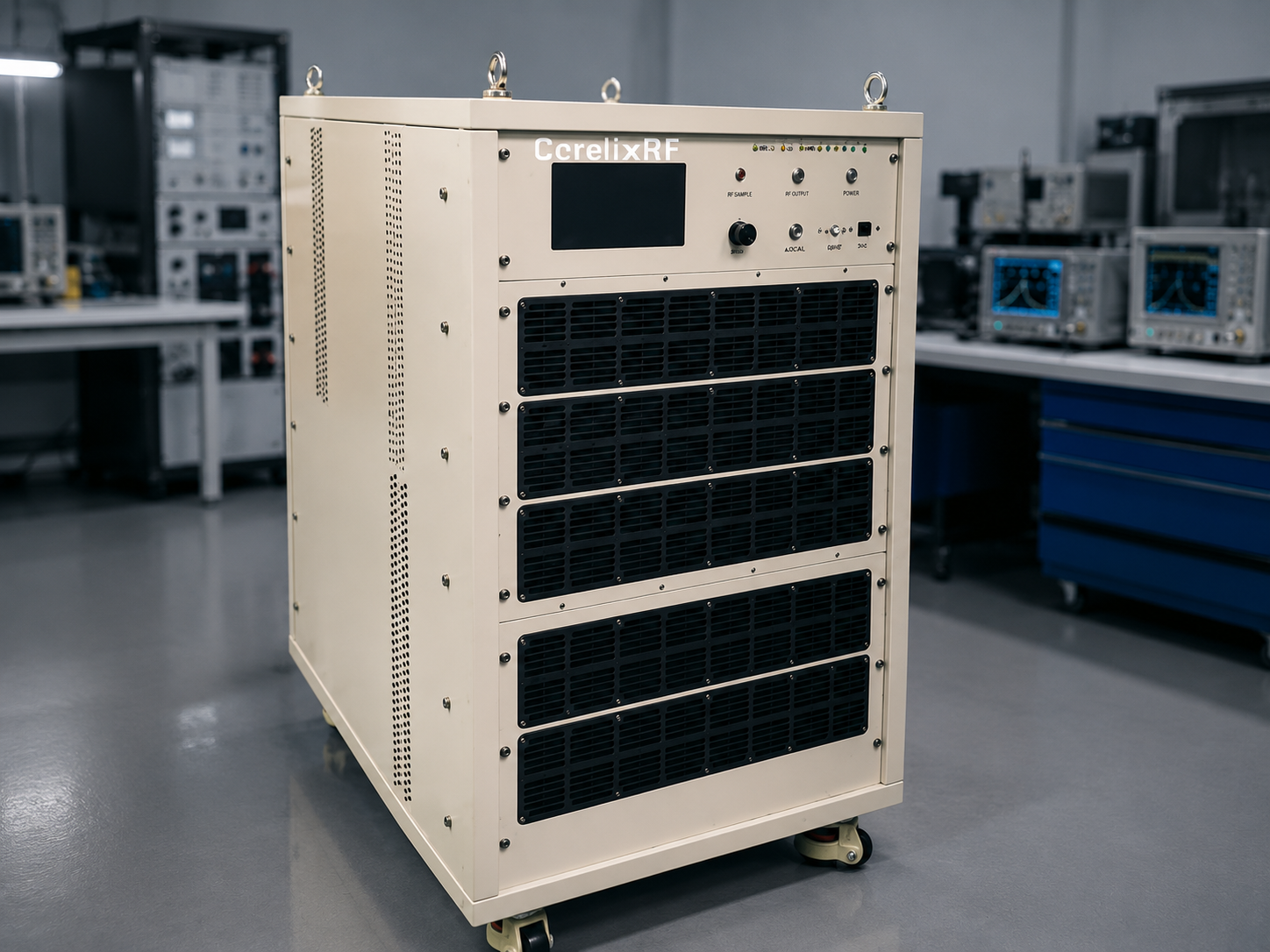

Integration Notes for 8-18 GHz Systems
Cooling and Operating Environment
The specification lists air cooling. Cooling should be reviewed with the expected duty cycle, rack spacing, ambient temperature, and service access. For compact module formats, the system designer must provide a suitable thermal path. For rack units, airflow direction and intake clearance should be checked before the amplifier is installed near other heat-producing equipment.
Monitoring and Protection
The extracted data references real-time temperature monitoring, real-time current monitoring, optional forward/reverse power monitoring, alarm and fault protection functions, over-temperature protection, over-drive protection, over-voltage protection, and VSWR protection or alarm functions. For high-power and microwave systems, these functions should be treated as engineering requirements. Ask which protections are active by default, which thresholds are fixed, which signals are available remotely, and how faults are reset.
Application Fit
The available CorelixRF specification lists test and measurement instrumentation, communication systems, RF interference system-level testing, and aerospace control systems as primary application areas. For general comparison, link readers to the CorelixRF amplifier overview . For broad microwave families, use the 6-18 GHz RF amplifier page when relevant, and use 2-6 GHz RF amplifier content for lower microwave comparisons. When the model needs non-standard mechanical packaging, connector changes, monitoring behavior, or control protocol support, direct the reader to custom RF amplifier development .
RFQ Checklist
A useful RFQ for this 8-18 GHz 1500W RF amplifier should include the exact frequency range, required output power at the reference plane, waveform type, CW or pulse operation, duty cycle, input drive level, load or antenna VSWR expectation, output connector or waveguide details, cooling constraints, mechanical envelope, control interface, monitoring requirements, documentation needs, target quantity, and project timeline.
If the amplifier will support RF testing and validation, include the fixture and calibration assumptions. If the source is an SDR or software-defined waveform generator, include bandwidth, crest factor, modulation type, and expected duty profile, then review the SDR RF amplifier integration path before finalizing power level.
Mistakes to Avoid
Do not assume that all amplifiers in the same band share the same connector, cooling, control, or protection behavior. Do not compare a module and a rack amplifier only by output power. Do not omit the output reference plane. Do not claim EMC compliance, communication range, or field strength without a complete system calculation and test method. A credible article should present the model’s known specification data and invite a project review for the details that depend on the installation.
FAQ
What model is covered in this guide?
This guide covers CRF-PA-8000M18000M-1500W, specified by CorelixRF for 8-18 GHz operation with 1500 W rated output power.
What is the focus keyword for SEO?
The focus keyword is 8-18 GHz 1500W RF amplifier. It is used in the title, first section, H2 structure, body, FAQ, and final CTA context.
What RF connectors are listed?
The extracted specification lists N-Female input and WRD650 waveguide output. Final connector and output reference details should be confirmed during quotation.
What protection functions should be discussed?
Discuss temperature monitoring, current monitoring, forward/reverse power monitoring if required, over-temperature protection, over-drive protection, over-voltage protection, and VSWR protection or alarm behavior.
Does this draft include images?
No. This replacement draft includes no generated image, no uploaded image, no body image, and no featured image assignment.
