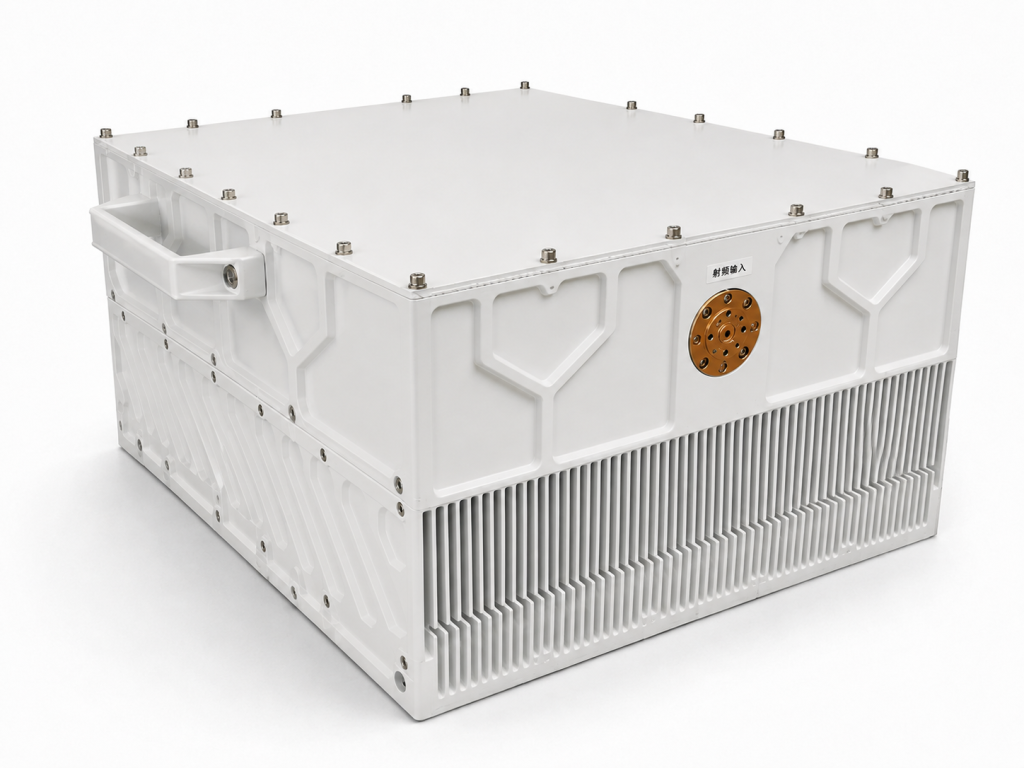

A 47-51.4 GHz 200W V band power amplifier is a high-power mmWave subsystem. The CorelixRF CRF-PA-47000M51400M-200W covers 47 GHz to 51.4 GHz and is described as a GaN SSPA platform with WR19 output, 1.85 mm female input, Ethernet remote control, status monitoring, gain control, forced-air cooling, and project-ready protection functions.
This guide uses a risk-and-validation structure. The goal is to help technical buyers define what must be checked before, during, and after quotation. For upper-mmWave context, CorelixRF’s high frequency RF capability page is a natural internal link. For related lower-frequency comparison, see the 18-40 GHz amplifier category and standard RF amplifier platform page.
Risk 1: waveguide and load mismatch
At 47-51.4 GHz and 200 W output, WR19 hardware must be treated as part of the amplifier system. The RFQ should describe waveguide transitions, couplers, loads, sensor placement, flange condition, and whether the test path is fixed or reconfigured often. Poorly defined output hardware can create reflected-power, measurement, and repeatability issues that are not solved by amplifier selection alone.
Risk 2: measurement uncertainty

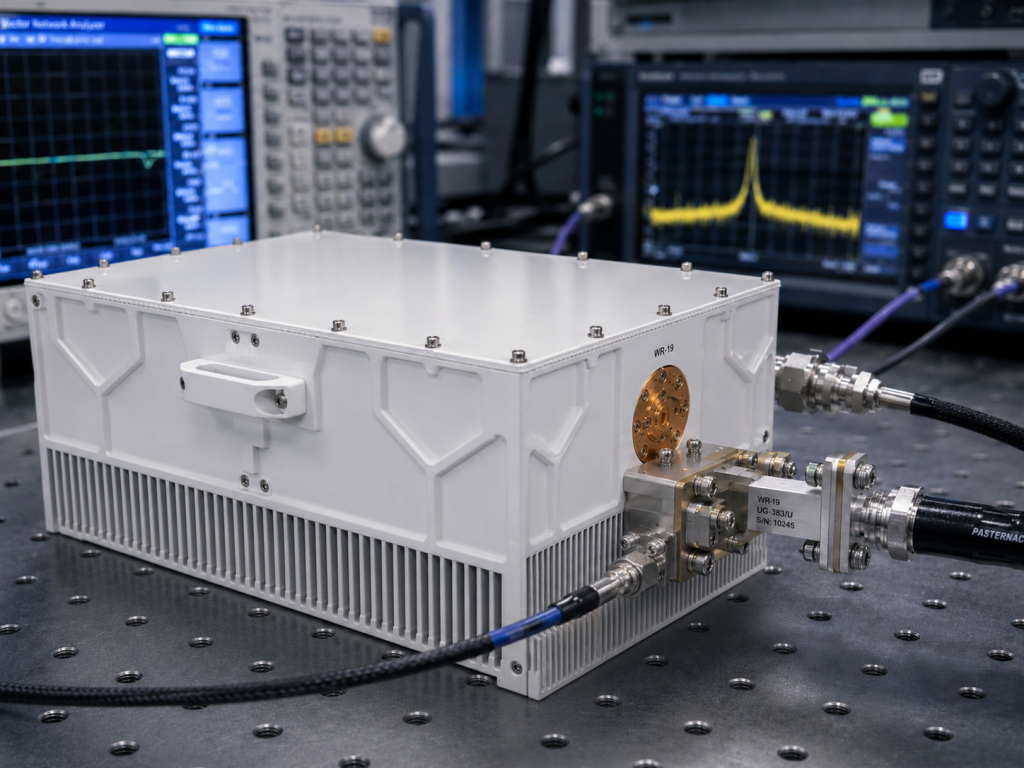

High-power V band measurement requires calibrated sensors, suitable couplers, protected receivers, and a documented procedure. The buyer should define which output points, gain settings, operating duration, and thermal conditions must appear in the acceptance data. CorelixRF’s RF testing and validation workflow is relevant because the amplifier should be verified under conditions that resemble actual use.
Risk 3: thermal load and operating duration

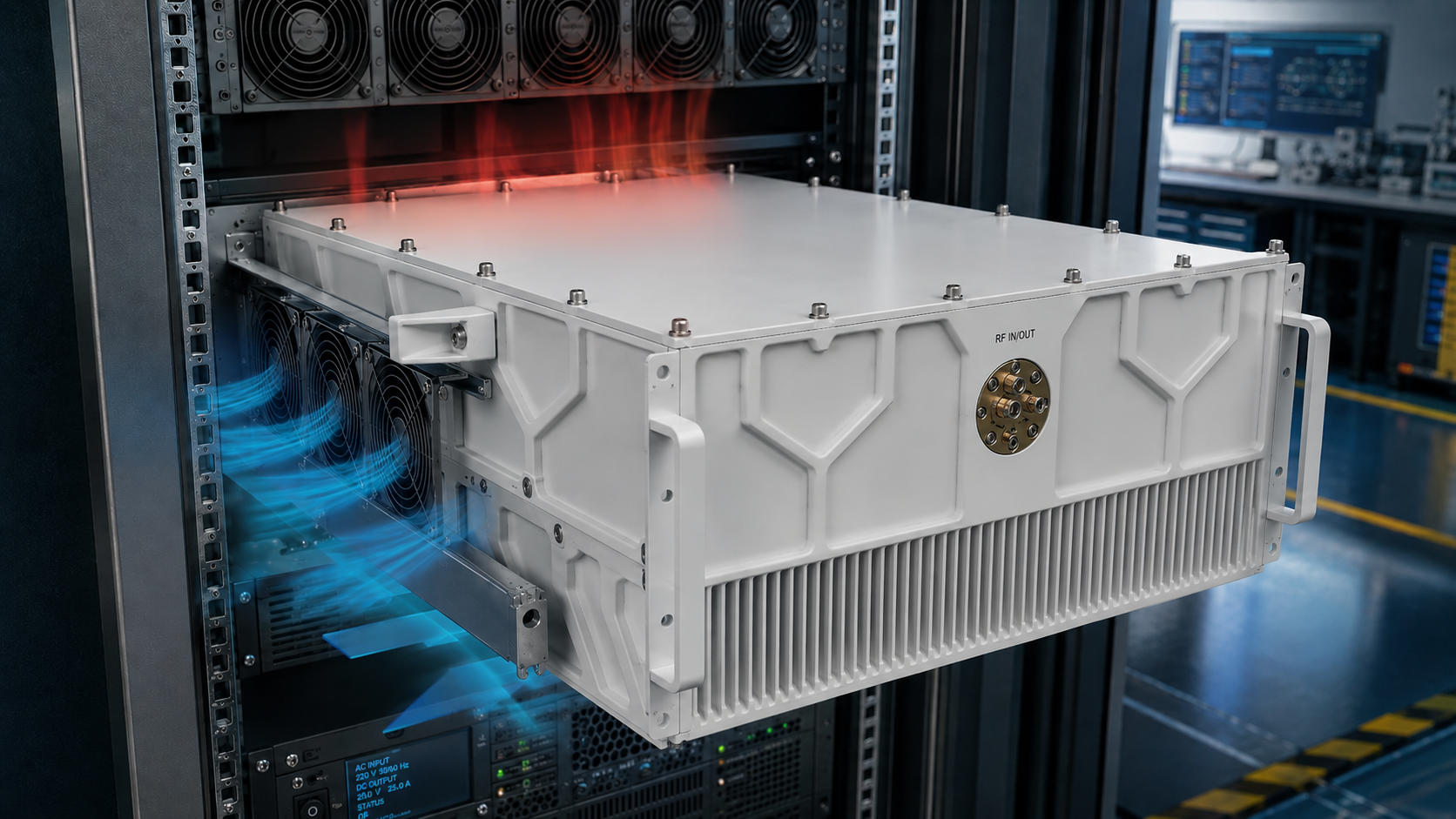

The supplied specification describes a high-power forced-air unit. Thermal planning should include room temperature, rack placement, airflow clearance, duty cycle, continuous operation time, and service access. A 200 W V band system can be limited by heat rejection or rack environment if those details are left until installation.
Risk 4: remote-control assumptions
Ethernet remote control is useful only when software expectations are defined. The project team should describe gain-control commands, status monitoring, alarm handling, logging, interlocks, and safe shutdown behavior. If the amplifier becomes part of an automated test rack, interface details should be reviewed before the mechanical and software plans are finalized.
Specification summary
- Model: CRF-PA-47000M51400M-200W
- Frequency range: 47 GHz to 51.4 GHz
- Rated output power: 200 W
- Technology platform: GaN SSPA
- RF input/output: 1.85 mm female input and WR19 output
- Control: Ethernet remote-control interface
- Cooling: high-power forced-air unit
- Protection: fault protection, over-temperature, over-drive, over-voltage/current and VSWR-related protection support
Validation plan for the RFQ
Ask for a review of output power, gain, gain control behavior, spurious response, input/output power detection, temperature control, fault behavior, and relevant documentation. Include the waveform, duty cycle, frequency points, load condition, measurement method, and required data format. CorelixRF’s engineering and manufacturing page helps explain why mmWave power amplifier delivery involves RF design, mechanical integration, thermal control, assembly discipline, and test evidence.
FAQ
Is this a V band high-power amplifier?
Yes. The supplied specification covers 47 GHz to 51.4 GHz with 200 W rated output power.
What output interface is listed?
The datasheet lists WR19 output and 1.85 mm female RF input.
Why is validation planning important?
At V band, waveguide hardware, calibration, thermal conditions, and control behavior can directly affect acceptance results.
What is the next step for buyers?
Prepare a detailed RFQ and use the Contact CTA to request a CorelixRF project review.
Discuss Your V Band Power Amplifier Project
Final engineering review point for CRF-PA-47000M51400M-200W
Before procurement, define the exact operating points, output target, waveform, duty cycle, source level, load condition, control method, cooling environment and acceptance data. For undefined, those details help CorelixRF review the amplifier as part of the actual RF chain rather than as an isolated model number.
